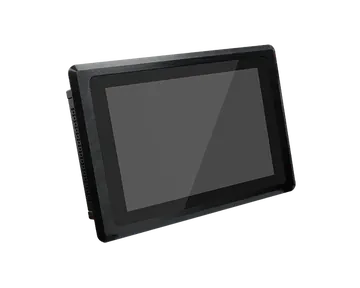

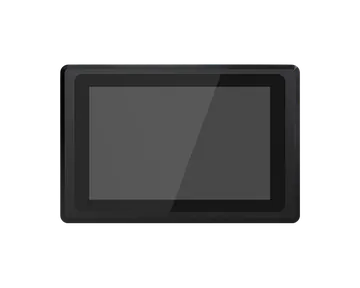

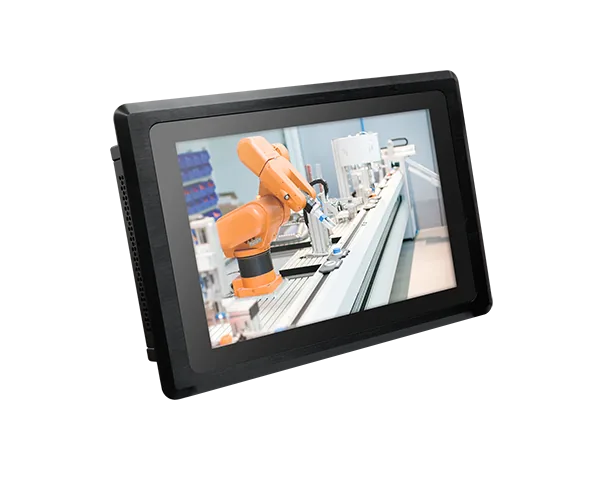

KS101-EHL
10.1" Industrial Touch Panel PC, Intel® Atom®, DDR4, 1 Mini-PCIe, 1 M.2 E Key, 1 VGA, 1 DP++, 2 LAN, 2 COM, 2 x USB 3.1 Gen2, 2 x USB 2.0
- Intel® Atom® X Series Processors, Quad Core
- Touch Type: Projected Capacitive Touch
- Dual Display: VGA + DP++
- Multiple Expansions: 1 Mini-PCIe, 1 M.2 2230 E Key
- Wide Voltage: Support 9 ~ 36V
Főbb jellemzők
Tanúsítványok
#Windows 10
#9~36V DC-in
#4K2K Display
#Windows
#Linux
#VGA
#DP
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#Intel® Atom® Processors Elkhart Lake X Series
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Atom® X Series Processors, Quad Core
- Touch Type: Projected Capacitive Touch
- Dual Display: VGA + DP++
- Multiple Expansions: 1 Mini-PCIe, 1 M.2 2230 E Key
- Wide Voltage: Support 9 ~ 36V
System
- Processor
- Intel® Atom® x6425E Processor, Quad Core, 1.5M Cache, 2.0GHz (3.0GHz), 12W Intel® Atom® x6413E Processor, Quad Core, 1.5M Cache, 1.5GHz (3.0GHz), 9W
- Memory
- Single DDR4-3200 SODIMM Up to 32GB
- BIOS
- AMI SPI 256Mbit (supports UEFI boot only)
Display and Touch Screen
- Display
- 10.1" TFT LCD Panel
- Brightness
- 500 (cd/m²)
- Contrast
- 16 : 10
- Backlight Lifetime
- 50,000 (hours)
- Max. Resolution
- 1280 x 800
- Touch Type
- Projected Capacitive
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
- Display
- 1 x DP++ 1 x VGA DP++: resolution up to 4096x2304 @ 60Hz VGA: resolution up to 1920x1200 @ 60Hz
- Dual Displays
- DP++ + VGA
Storage
- External
- 1 x 2.5" SATA 3.0 Drive Bay
Expansion
- Interface
- 1 x Mini-PCIe (PCIe/USB) 1 x M.2 2230 E Key (PCIe x1/USB2.0)

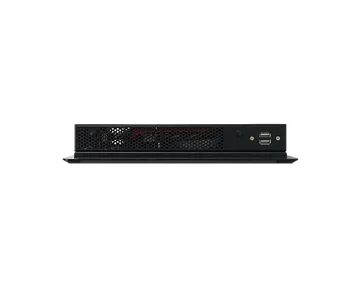

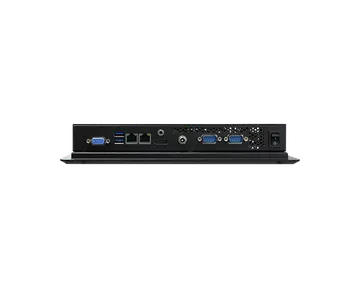

I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS232/422/485 1 x RS232
- USB
- 2 x USB 3.1 Gen2 2 x USB 2.0
- Display
- 1 x DP++ 1 x VGA
- Buttons
- 1 x Power Button
- Audio
- 1 x line-out
Power
- Type
- DC 9-36V
- Connector
- DC Jack
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64bit
- Linux
- Linux
Environment
- Operating Temperature
- -20 ~ 65°C
- Storage Temperature
- -30 ~ 80°C
- Relative Humidity
- 10 to 95% @ 40°C, non-condensing
Mechanism
- Construction
- Aluminum Front Bezel
- IP Rating
- IP65 Front Panel Protection

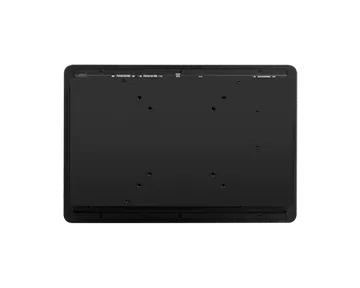

- Mounting
- VESA mount 100 x 100
- Dimensions (W x H x D)
- 294 x 193 x 48mm
- Weight
- 1.7 Kg
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- · 1 KS101-EHL Touch Panel PC · 1 Poron foam · 1 Quick Installation Guide
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS101-EHLW36-X13 | 750-KS1012-000G | KS101-EHL: KS101-EHLW36-X13, 10.1" TFT WXGA Fan-less Panel PC with Projected Capacitive Touch, Intel® ATOM® x6413E, DC Input 9-36V DC jack, F/G SYSTEM RoHS |
| KS101-EHLW36-X25 | 750-KS1012-100G | KS101-EHL: KS101-EHLW36-X25, 10.1" TFT WXGA Fan-less Panel PC with Projected Capacitive Touch, Intel® ATOM® x6425E, DC Input 9-36V DC jack, F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Power Cord | 785-PWRD | Power Cord; Stand(USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106012-000G | 60W,12V/5A,Level 6, RoHS |
| Panel Mount | 761-VS1010-000G | ACCESSORY PANEL MOUNT KITS VIS101, RoHS |
