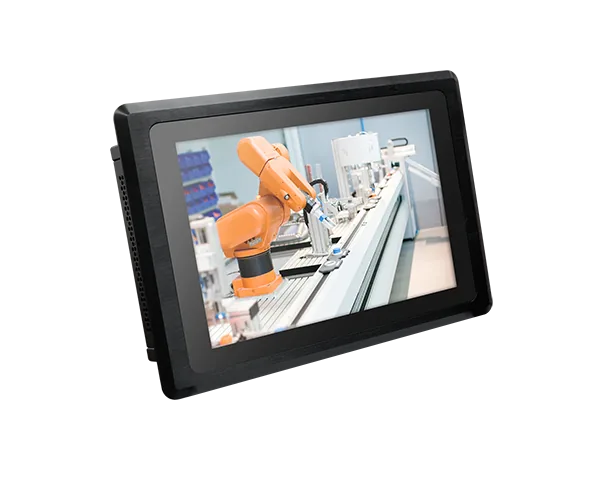

KS101P-MTH
10.1" Industrial Touch Panel PC, Intel Core™ Ultra 7 155U/Ultra 5 125U, Projected Capacitive Touch, DDR5, HDMI, USB Type C, M.2 E Key, M.2 B Key, M.2 M Key, 9 ~ 36VDC, 2 2.5GbE, 1 COM, 3 USB 3.2, 1 USB Type C, IP65
- Intel® Core™ Ultra 7 155U / Ultra 5 125U Processor
- Touch Type: Projected Capacitive Touch
- Dual Display: HDMI + USB Type C
- Multiple Expansions: M.2 2230 E Key, M.2 3052 B Key, M.2 2280 M Key
- Wide Voltage: Support 9 ~ 36V
Főbb jellemzők
Tanúsítványok
#9~36V DC-in
#USB Type-C DP
#M.2
#Intel® Core™ Ultra processors
#SIM Slot
#IP65 Front Panel Protection
#HDMI
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Core™ Ultra 7 155U / Ultra 5 125U Processor
- Touch Type: Projected Capacitive Touch
- Dual Display: HDMI + USB Type C
- Multiple Expansions: M.2 2230 E Key, M.2 3052 B Key, M.2 2280 M Key
- Wide Voltage: Support 9 ~ 36V
System
- Processor
- Intel® CoreTM Ultra 7 155U, 12C, 12M Cache, 1.7GHz (4.8GHz) Intel® CoreTM Ultra 5 125U, 12C, 12M Cache, 1.3GHz (4.3GHz)
- Memory
- Two 262-pin SODIMM DDR5 5600MHz up to 96GB
- BIOS
- AMI SPI 256Mbit (supports UEFI boot only)
Display and Touch Screen
- Display
- 10.1" TFT LCD Panel
- Brightness
- 500 (cd/m²)
- Backlight Lifetime
- 50,000 (hours)
- Max. Resolution
- 1280 x 800
- Touch Type
- Projected Capacitive
- Aspect Ratio
- 16 : 10
Graphics
- Controller
- Intel® Graphics
- Feature
- OpenGL 4.6, Direct X 12.1, OpenCL 3.0 HW Decode: HEVC, VP9, AV1, AVC HW Encode: HEVC, VP9, AV1, AVC
- Display
- 1 x HDMI 1.4b 1 x USB-C DP Alt. mode HDMI: resolution up to 4096x2160@24Hz
- Dual Displays
- HDMI 1.4b + USB-C DP Alt. mode
Expansion
- Interface
- 1 x M.2 M key 2280 (PCIe Gen4 x4) 1 x M.2 B key 3052 (USB 3.0/2.0, PCIe x1, SATA), 1 x SIM slot for 4G/5G 1 x M.2 E key 2230 (USB 2.0/PCIe x1)
I/O
- Ethernet
- 2 x 2.5GbE (RJ-45)
- Serial
- 1 x RS232/422/485
- USB
- 3 x USB 3.2 1 x USB Type C
- Display
- 1 x HDMI 1.4b 1 x USB-C DP Alt. mode
- Buttons
- 1 x Power Button
- Audio
- Line-out/Mic-in
Power
- Type
- DC 9-36V
- Connector
- DC Jack
Environment
- Operating Temperature
- -20 ~ 60°C with 0.6m/s air flow
- Storage Temperature
- -30 ~ 80°C
- Relative Humidity
- 10 to 95% @ 40°C, non-condensing
Mechanism
- Construction
- Aluminum Front Bezel
- IP Rating
- IP65 Front Panel Protection
- Mounting
- VESA mount 100 x 100
- Dimensions (W x H x D)
- 294 x 193 x 55 mm
- Weight
- 3 Kg
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC, UKCA, RoHS
Packing List
- Packing List
- • 1 KS101P-MTH Touch Panel PC • 1 Poron foam • 1 Quick Installation Guide
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS101P-MTHW36-155U | 750-KS1013-000G | KS101P-MTH: KS101P-MTHW36-155U, 10.1” TFT WXGA Fan-less Panel PC with Projected Capacitive Touch, Intel® Ultra 7 155U, DC Input 9-36V DC jack |
| KS101P-MTHW36-125U | 750-KS1013-100G | KS101P-MTH: KS101P-MTHW36-125U, 10.1” TFT WXGA Fan-less Panel PC with Projected Capacitive Touch, Intel® Ultra 5 125U, DC Input 9-36V DC jack |
| Item Name | Part Number | Description |
|---|---|---|
| Power Cord | 785-PWRD | Power Cord; Stand(USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106012-000G | 60W,12V/5A,Level 6, RoHS |
| Panel Mount | 761-VS1010-000G | ACCESSORY PANEL MOUNT KITS VIS101, RoHS |
