KS156-AL

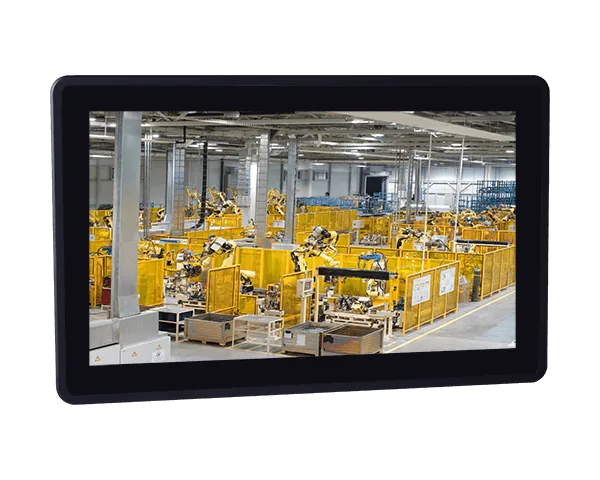

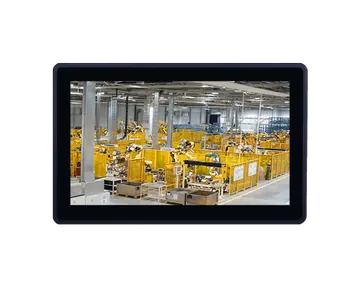

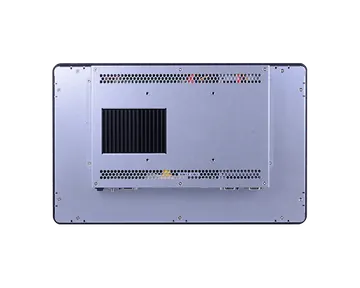

KS156-AL, Fanless Touch Panel PC with Intel Atom®/Pentium®, designed with Fanless and IP65 front panel design which is ideal for automation/transportation/MES applications
- 15.6" 1366x768 TFT LCD Panel with Touch Screen
- 1x 2.5" SATA drive bay
- IP65 Front Panel Protection
- VESA/Panel Mount
- Rich I/O: 2 LAN, 2 COM, 4 USB 3.0
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#Mini PCIe
#Fanless Design
#IP65 Front Panel Protection
#1G Ethernet
#Windows
#Linux
#HDMI
#VGA
#DDR3L
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 15.6" 1366x768 TFT LCD Panel with Touch Screen
- 1x 2.5" SATA drive bay
- IP65 Front Panel Protection
- VESA/Panel Mount
- Rich I/O: 2 LAN, 2 COM, 4 USB 3.0
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor E3900 Family, BGA 1296 Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
- Memory
- Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1867MHz
- BIOS
- Insyde SPI 64Mbit (supports UEFI boot only)
Display and Touch Screen
- Display
- 15.6” 1366x768 TFT LCD Panel with Capacitive/5-Wire Resistive Touch Screen
- Brightness
- 400 cd/m²
- Contrast
- 500:1
- Backlight Lifetime
- 50,000 hours
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVCOpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
- Display
- 1 x VGA 1 x HDMI VGA: resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 3840x2160 @ 30Hz
- Dual Displays
- HDMI + VGA
Storage
- External/Internal
- 1 x 2.5" SATA 3.0 Drive Bay
Expansion
- Interface
- 1 x M.2 1 x Full-size Mini PCIe (PCIe/USB)
Audio
- Audio Codec
- Realtek ALC888 5.1-channel
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED
Top I/O
- Antenna Connectors
- 2 x Antenna Hole for Wi-Fi or Cell Module

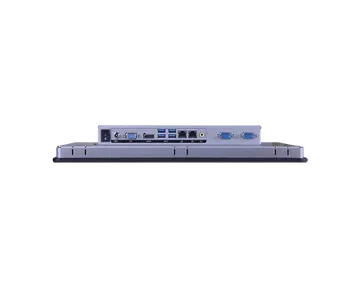

Bottom I/O
- Ethernet
- 2 x GbE (RJ-45) (10/100/1000Mbps)
- Serial
- 2 x RS-232/422/485 (DB-9)
- USB
- 4 x USB 3.0 (type A)
- Display
- 1 x VGA 1 x HDMI
- Audio
- 1 x Line-out
- Buttons
- 1 x Power Button
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 12V DC 15V - 36V DC
- Connector
- DC Jack
OS Support
- OS Support (UEFI Only)
- Windows: Windows 10 (64-bit) Linux: Yocto Project Fedora 24 (Intel Graphics Driver available) Linux
Environment
- Operating Temperature
- 0 to 50°C
- Storage Temperature
- -30 to 70°C
- Relative Humidity
- 5 to 85% RH (non-condensing)
Mechanism
- Construction
- Sheet Metal
- IP Rating
- IP65 Front Panel Protection
- Mounting
- Panel/VESA Mount
- Dimensions (W x H x D)
- 412.1 mm x 261.4 mm x 63 mm (W x H x D)
- Weight
- 6.17 KG
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC
Packing List
- Packing List
- 1 KS156-AL Touch Panel PC 1 Poron foam 1 Quick Installation Guide Note: Please choose "KS156-AL product page > Download button" to download the Driver and Manual.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS156P-ALWD36-4200 | 750-KS1561-000G | 15.6" Panel PC ; AL173, Intel Atom N4200, 4G RAM, 15-36VDC input, PCT, F/G SYSTEM, RoHs |
| KS156R-ALWD36-4200 | 750-KS1561-100G | 15.6" Panel PC ; AL173, Intel Atom N4200, 4G RAM, 15-36VDC input, 5-wire Resistive Touch, F/S SYSTEM, RoHs |
| KS156P-ALWD36-3940 | 750-KS1561-200G | 15.6" Panel PC ; AL173, Intel Atom E3940, 4G RAM, 15-36VDC input, PCT, F/G SYSTEM, RoHs |
| KS156P-ALDC12-3940 | 750-KS1560-200G | 15.6" Panel PC ; AL171, Intel Atom E3940, 4G RAM, 12VDC input, PCT, F/G SYSTEM, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Memory | 138-340001-109G | DDR3L SO-DIMM 204-pin, 4GB |
| Wi-Fi | 761-110091-000G | Wi-Fi kit, RoHS |
| Power Cord | 332-700010-201G | Power cord, Standards (USA), 1.8m, RoHS |
| Power Adapter | 671-112005-100G | 120W, 24V/5V, Level 6, RoHS |
| Panel Mount | 761-KS1560-000G | Panel PC Panel Mount Kit, RoHS |
| Power adaptor | 671-106013-000G | 60W, 12V/5V, Level 6, RoHS |
