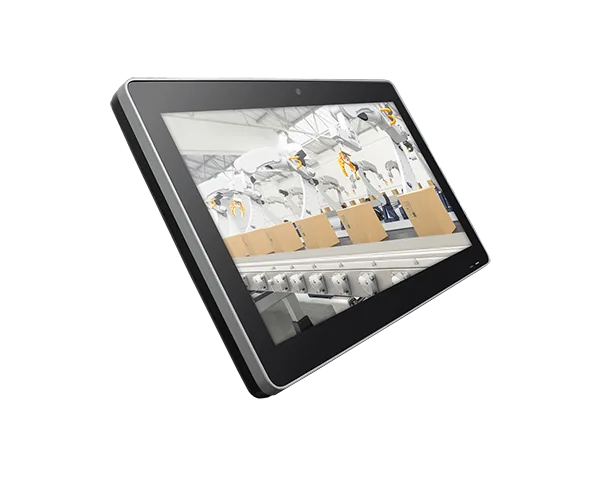

KS156P-TGU
15.6" Industrial Touch Panel PC, Intel® Core™, Intel® Celeron®, DDR4, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 1 HDMI, 1 DP++, 1 2.5GbE, 1 GbE, 4 COM, 4 USB 3.1 Gen2, 1 USB Type-C
- Intel® Core™ i5-1145GRE, Quad Core
- Intel® Celeron® 6305E, Dual Core
- Touch Type: Projected Capacitive Touch
- Dual Display: HDMI + DP++
- Multiple Expansions: 1 M.2 2242/2280 M Key, 1 M.2 2242/3042/3052 B Key, 1 M.2 2230 E Key
- Wide Voltage: Support 9 ~ 36V
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Fanless Design
#IP65 Front Panel Protection
#1G Ethernet
#Windows
#Linux
#HDMI
#DP
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#KC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Core™ i5-1145GRE, Quad Core
- Intel® Celeron® 6305E, Dual Core
- Touch Type: Projected Capacitive Touch
- Dual Display: HDMI + DP++
- Multiple Expansions: 1 M.2 2242/2280 M Key, 1 M.2 2242/3042/3052 B Key, 1 M.2 2230 E Key
- Wide Voltage: Support 9 ~ 36V
System
- Processor
- Intel® Core™ i5-1145GRE, Quad Core, 8M Cache, 1.5GHz (4.1GHz), 15W Intel® Celeron® 6305E, Dual Core, 4M Cache, 1.8GHz (1.8GHz), 15W
- Memory
- Two 260-pin SODIMM up to 64GB (32GB per slot) Dual channel DDR4 up to 3200MHz
- BIOS
- AMI SPI 256Mbit
Display and Touch Screen
- Display
- 15.6" TFT LCD Panel
- Brightness
- 400 (cd/m2)
- Contrast
- 16 : 9
- Backlight Lifetime
- 50,000 (hours)
- Max. Resolution
- 1920 x 1080
- Touch Type
- Projected Capacitive
Graphics
- Controller
- Intel® Iris® Xe Graphics for i7/i5 Processors Intel® UHD Graphics for i3/Celeron Processors
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1 HW Encode: AVC/H264, JPEG, HEVC/H265, VP9
- Display
- 1 x DP++ 1 x HDMI 2.0 DP++: resolution up to 3840x2160 @ 60Hz HDMI: resolution up to 3840x2160 @ 24Hz
- Dual Displays
- DP++ + HDMI
Storage
- External
- 1 x 2.5" SATA 3.0 Drive Bay
Expansion
- Interface
- 1 x M.2 2242/2280 M Key (PCIe Gen4 x4) 1 x M.2 2242/3042/3052 B Key (PCIe Gen3 x1/SATA/USB 3.1 Gen1) 1 x M.2 2230 E Key (USB2.0)

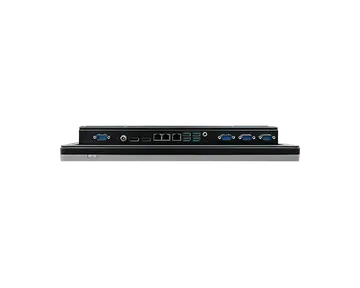

I/O
- Ethernet
- 2 x GbE 1 x 2.5GbE
- Serial
- 2 x RS-232/422/485 2 x RS-232
- USB
- 4 x USB 3.1 Gen2 1 x USB Type-C (Support USB 3.1 Gen2, 15W power delivery and DP Alt mode)
- Display
- 1 x DP++ 1 x HDMI
- Buttons
- 1 x Power Button
- Audio
- 1 x line-out
Power
- Type
- DC 9-36V
- Connector
- DC Jack
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64bit
- Linux
- Linux
Environment
- Operating Temperature
- 0 ~ 50°C
- Storage Temperature
- -30 ~ 80°C
- Relative Humidity
- 10 to 95% @ 40°C, non-condensing
Mechanism
- Construction
- Plastic + Sheet Metal
- IP Rating
- IP65 Front Panel Protection without power button
- Mounting
- VESA mount 100 x 100
- Dimensions (W x H x D)
- 392 x 256 x 58.7 mm
- Weight
- 4.5KG
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC Class A, RoHS, UKCA, KC
Packing List
- Packing List
- 1 KS156P-TGU Touch Panel PC 1 Poron foam 1 Quick Installation Guide
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS156P-TGUW36-45G | 750-KS156P3-000G | KS156P-TGUW36: 15.6" TFT WXGA Fan-less Panel PC with Projected Capacitive Touch, Intel® Core i5-1145GRE, DC Input 9-36V DC jack, F/G SYSTEM RoHS |
| KS156P-TGUW36-05E | 750-KS156P3-100G | KS156P-TGUW36: 15.6" TFT WXGA Fan-less Panel PC with Projected Capacitive Touch, Intel® Celeron 6305E, DC Input 9-36V DC jack, F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Power Cord | 785-PWRD | Power Cord; Stand(USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106012-000G 671-112005-100G | 60W,12V/5A,Level 6, RoHS 120W,24/5A,Leve6, RoHS |
| Panel Mount | 761-TPC120-000G | ACCESSORY PANEL MOUNT KITS, RoHS |
