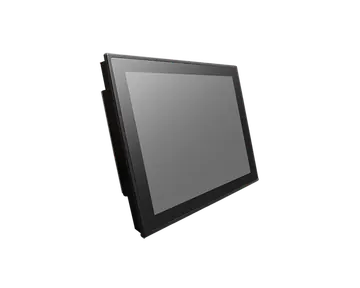

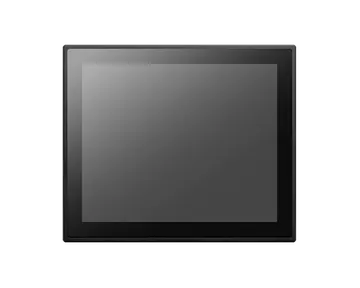

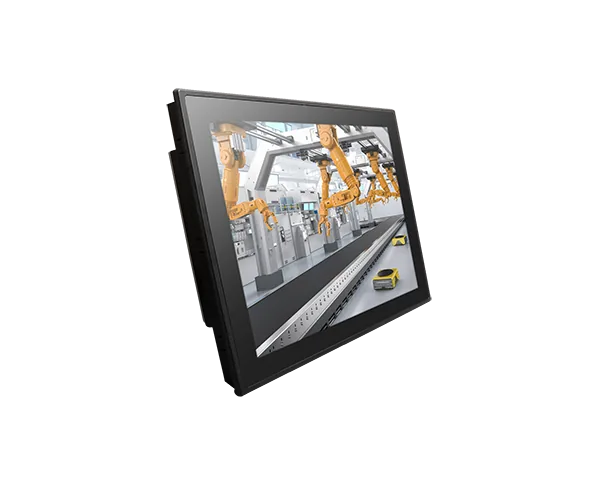

KS170-ADN
17" Industrial Touch Panel PC, Intel® Atom®, DDR5, 1 M.2 B Key, 1 M.2 E Key, 1 HDMI, 1 DP++, 2 2.5GbE, 4 COM, 3 USB 3.2 Gen2, 1 USB 2.0, Projected Capacitive/5-Wire Resistive Touch
- Intel® Atom® Alder Lake-N Processors
- Touch Type: Projected Capacitive Touch & Resistive Touch
- Dual Display: HDMI & DP++
- Multiple Expansions: 1 M.2 2242/3042/3052 B Key ; 1 M.2 2230 E Key
- Wide Voltage: 9-36V input
Főbb jellemzők
Tanúsítványok
#9~36V DC-in
#Intel® Atom® Alder Lake-N Processors
#M.2
#IoT
#Windows 11
#Intel
#Fanless Design
#Windows
#Linux
#HDMI
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#KC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Atom® Alder Lake-N Processors
- Touch Type: Projected Capacitive Touch & Resistive Touch
- Dual Display: HDMI & DP++
- Multiple Expansions: 1 M.2 2242/3042/3052 B Key ; 1 M.2 2230 E Key
- Wide Voltage: 9-36V input
System
- Processor
- Intel® Processor N97, 4 cores, 6M Cache, up to 3.60 GHz, 12W
- Memory
- One 262-pin SODIMM up to 16GB, Single Channel DDR5 4800MHz
- BIOS
- AMI SPI 256Mbit
Display and Touch Screen
- Display
- 17" TFT LCD Panel
- Brightness
- 350 (cd/m²)
- Contrast
- 5 : 4
- Backlight Lifetime
- 50,000 (hours)
- Max. Resolution
- 1280 x 1024
- Touch Type
- Projected Capacitive / 5-Wire Resistive Touch
Graphics
- Controller
- Intel® UHD Graphics
- Feature
- OpenGL 4.6, Direct X 12.1, OpenCL 3.0 HW Decode: HEVC, VP9, AV1, AVC HW Encode: HEVC, VP9, AVC
- Display
- 1 x DP++ 1 x HDMI 2.0 DP++: resolution up to 3840x2160 @ 60Hz HDMI: resolution up to 3840x2160 @ 24Hz
- Dual Displays
- DP++ + HDMI
Storage
- External
- 1 x 2.5" SATA 3.0
Expansion
- Interface
- 1 x M.2 2242/3042/3052 B Key (PCIE Gen3x1 or SATA3 and USB 2.0) 1 x M.2 2230 E Key (PCIE Gen3x1 and USB 2.0, support Inte® CNVi) (CNVi only support by selected CPU)

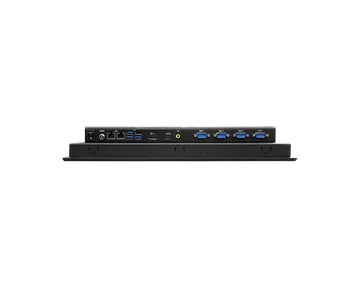

I/O
- Ethernet
- 2 x 2.5GbE
- Serial
- 2 x RS-232/422/485 2 x RS-232
- USB
- 3 x USB 3.2 Gen2 1 x USB 2.0
- Display
- 1 x DP++ 1 x HDMI
- Buttons
- 1 x Power Button
- Audio
- 1 x line-out
Power
- Type
- DC 9-36V
- Connector
- DC Jack
- Power
- 9V@4.0A / 36V@1.2A
OS Support
- Microsoft
- Windows 11 IoT Enterprise 64bit
- Linux
- Linux
Environment
- Operating Temperature
- 0 ~ 50°C with 0.6m/s air flow
- Storage Temperature
- -30 ~ 80°C
- Relative Humidity
- 10 to 95% @ 40°C, non-condensing
Mechanism
- Construction
- Aluminum Front Bezel + Sheet Metal
- IP Rating
- IP65 Front Panel Protection

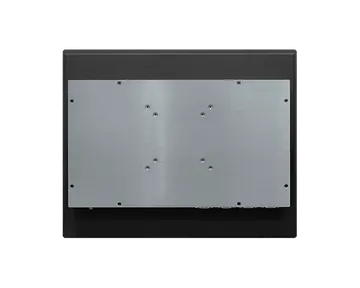

- Mounting
- VESA mount 100 x 100
- Dimensions (W x H x D)
- 403.8 x 336.4 x 59.5 mm
- Weight
- 6.2 KG
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms MIL-STD-810G Standard
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min MIL-STD-810G Standard
- Certifications
- CE, FCC Class A, RoHS, UKCA, KC
Packing List
- Packing List
- · 1 KS170-ADN Touch Panel PC · 1 Poron foam · 1 Quick Installation Guide
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS170P-ADNW36-N97 | 750-KS17000-000G | KS170P-ADNW36-N97, 17" TFT XGA Fan-less Panel PC with Projected Capacitive Touch, Intel® N97, DC Input 9-36V DC jack, F/G SYSTEM RoHS |
| KS170R-ADNW36-N97 | 750-KS17000-100G | KS170R-ADNW36-N97, 17" TFT XGA Fan-less Panel PC with 5-Wire Resistive Touch, Intel® N97, DC Input 9-36V DC jack, F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Power Cord | 785-PWRD | Power Cord; Stand(USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106012-000G 671-112005-100G | 60W,12V/5A,Level 6, RoHS 120W,24/5A,Leve 6, RoHS |
| Panel Mount | 761-P19003-000G | ACCESSORY PANEL MOUNT KITS, RoHS |
