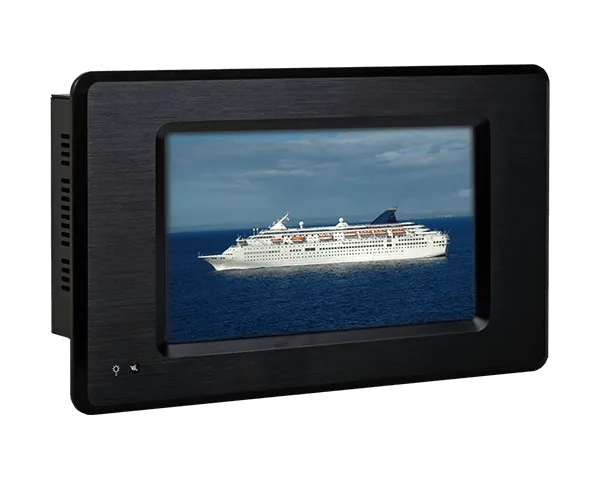

KS200/KS202
7" Light Industrial Touch Panel PC, TI® AM3517, DDR2, NAND Flash, SD/MMC, Open Frame (KS202)
- 7" WVGA Touch Screen Fanless Panel PC
- TI® AM3517, ARM
- 512MB DDR2 onboard
- 512MB NAND Flash onboard
- 2 USB 2.0, 1 LAN, 2 COM, 1 SD/MMC, 12-bit GPIO
- 10-Year CPU Life Cycle Support
Főbb jellemzők
Tanúsítványok
#Fanless Design
#IP65 Front Panel Protection
#1G Ethernet
#Windows
#VGA
#Low Power Consumption
#RoHS Certification
#UL Certification
#CE Certification
#FCC Certification
#UL-US Certification
Főbb jellemzőkKey features
- 7" WVGA Touch Screen Fanless Panel PC
- TI® AM3517, ARM
- 512MB DDR2 onboard
- 512MB NAND Flash onboard
- 2 USB 2.0, 1 LAN, 2 COM, 1 SD/MMC, 12-bit GPIO
- 10-Year CPU Life Cycle Support
System
- Processor
- TI® AM3517 Sitara ARM Cortex-A8
- Memory
- 512MB DDR2 onboard (4 DDR2 64Mx16 RAM)
Display and Touch Screen
- Display
- 7" 800x480 WVGA TFT LCD Panel with 4-Wire Resistive Touch Screen (TI® TSC2004 touch screen controller)
- Brightness
- 400 cd/m²
Storage
- External/Internal
- 1 x SD/MMC Card Socket 512MB NAND Flash (Samsung K9F4G08U0D flash memory 512Mx 8bit)
Ethernet
- Controller
- 1 x LAN8710 10/100Mbps LAN Chip
LED
- Indicators
- 1 x Power LED

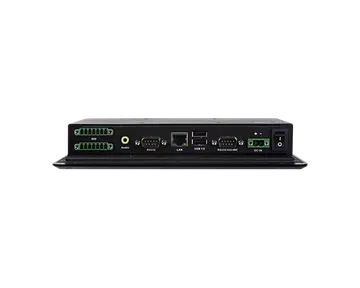

Bottom I/O
- Ethernet
- 1 x LAN (RJ-45)
- Serial
- 1 x RS-232/422/485 (DB-9) 1 x RS-232 (DB-9)
- USB
- 2 x USB 2.0 (Type A)
- Audio
- 1 x Line-out
- DIO
- 1 x 12-bit DIO (2x 7-pole terminal block)
- Buttons
- 1 x Power Switch
Power
- Type
- 9~30V DC
- Connector
- 2-Pole Terminal Block
OS Support
- OS Support
- Windows CE 6.0
Environment
- Operating Temperature
- -20°C ~ 65°C
- Storage Temperature
- -30°C ~ 80°C
- Relative Humidity
- 95% RH at 65°C, 1 Week
Mechanism
- Construction
- Aluminum Front Bezel Rugged Metal Housing
- IP Rating
- IP65 Front Panel Protection
- Mounting
- Wall mount (VESA 75x75) Panel mount (mounting clamp)
- Dimensions (W x H x D)

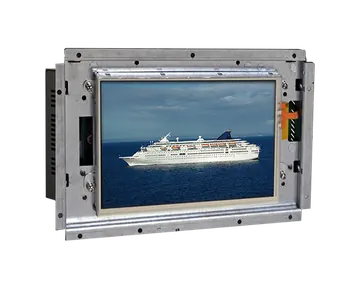

- KS200: 235mm x 150mm x 40.8mm (W x H x D) KS202 (Open Frame): 230.40mm x 142.32mm x 35.8mm (W x H x D)
- Weight
- KS200: 2.10 kg KS202 (Open Fram): 1.90 kg
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UL, Compliant with IEC 60945 (Protected B)
Packing List
- Packing List
- 1 KS200/KS202 Touch Panel PC 1 Poron foam 1 24V power adapter 3 Terminal blocks 1 Quick Installation Guide Note: Please choose "KS200/KS202 product page > Download button" to download the Driver and Manual.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS202 | 750-KS2020-000G | 7" Panel PC, TI® AM3517 ARM, Resistive Touch, DC input, R10 |
| KS200 | 750-KS2000-000G | 7" Panel PC, TI® AM3517 ARM, Aluminum Front Bezel, Resistive Touch, DC input, R10 |
| Item Name | Part Number | Description |
|---|---|---|
| Power Cord | 785-PWRD | Power cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Wall Mount | 785-PPCWMK | Standard Panel PC Wall Mount kit |
| Panel Mount | 785-070PMK | 7" Panel PC Panel Mount kit |
