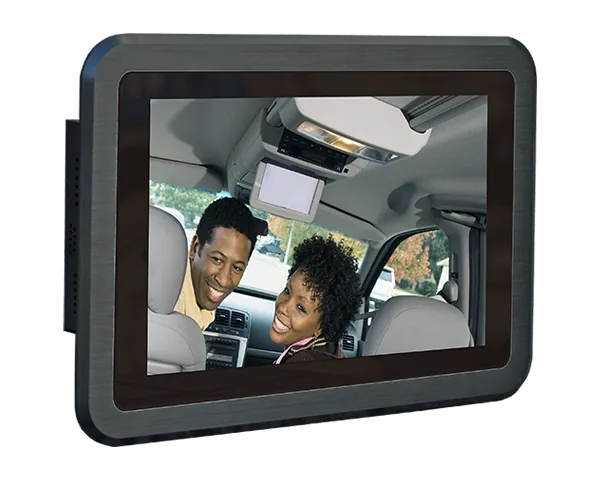

KS310-IMX6
10" Light Industrial Touch Panel PC, NXP i.MX6 Series, ARM, DDR3L, 1 Mini PCIe, 1 mSATA, 1 SIM
- 10.1" TFT Touch ARM-Based Fanless Panel PC
- 4GB eMMC onboard
- 1 SD card socket
- 1 HDMI, 2 USB 2.0, 1 USB Client, 1 LAN, 2 COM, 12-bit DIO
- Wide voltage 12~36V DC-in
- 15-Year CPU Life Cycle Support Until Q4' 27 (Based on NXP Roadmap)
Főbb jellemzők
Tanúsítványok
#NXP i.MX6 Series
#NXP
#Mini PCIe
#Fanless Design
#Android
#HDMI
#DDR3
#Low Power Consumption
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 10.1" TFT Touch ARM-Based Fanless Panel PC
- 4GB eMMC onboard
- 1 SD card socket
- 1 HDMI, 2 USB 2.0, 1 USB Client, 1 LAN, 2 COM, 12-bit DIO
- Wide voltage 12~36V DC-in
- 15-Year CPU Life Cycle Support Until Q4' 27 (Based on NXP Roadmap)
System
- Processor
- Freescale i.MX 6 series processor i.MX6L: i.MX 6DualLite at 1.0GHz, two cortex-A9 cores
- Memory
- 2GB DDR3 Memory Down
Display and Touch Screen
- Display
- 10.1” 1024x600 TFT LCD Panel with Capacitive Touch Screen
- Brightness
- 300 cd/m²
Storage
- External/Internal
- 1 x SD Card Socket 4GB eMMC Onboard
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe/USB) 1 x mSATA (Mini PCIe type) 1 x SIM Card Socket (reserved for 3G/LTE module)
Ethernet
- Controller
- 1 x Atheros AR8033 Ethernet PHY (10/100Mbps, 1Gbps data transmission)
Top I/O
- Serial
- 1 x RS232/422/485 (DB-9)

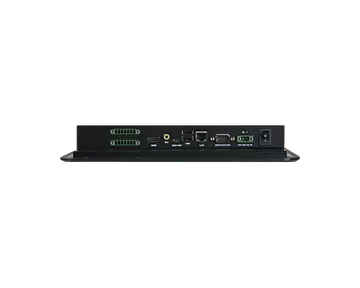

Bottom I/O
- Ethernet
- 1 x GbE (RJ-45)
- Serial
- 1 x RS-232 (DB-9)
- USB
- 2 x USB 2.0 (Type A) 1 x USB Client (Type Mini B)
- Display
- 1 x HDMI
- Audio
- 1 x Line-out/Mic-in 2 x Built-in 1W Speaker (left and right sides)
- DIO
- 1 x 12-bit DIO (7-pole terminal block)
- Buttons
- 1 x Power Switch
Power
- Type
- 12~36V DC
- Connector
- 2-Pole Terminal Block
OS Support
- OS Support
- Android 4.3
Environment
- Operating Temperature
- 0°C ~ 55°C
- Storage Temperature
- -30°C ~ 80°C
- Relative Humidity
- 85% RH at 65°C
Mechanism
- Construction
- Aluminum Front Bezel Rear Cover: Sheet Metal
- IP Rating
- IP65 Front Panel Protection
- Mounting
- Wall mount (VESA 75x75) Panel mount (mounting clamp)
- Dimensions (W x H x D)
- 293mm x 204mm x 43.4mm (W x H x D)
- Weight
- 1.74 kg
Standards and Certifications
- Shock
- Operating: 3G peak acceleration (11 m sec. duration) Non-operating: 10G peak acceleration (11 m sec. duration) IEC 68-2-64 compliant
- Vibration
- Operating: random 1G, 5~500 Hz Non-operating: Sine wave, 2G, 10~500Hz
- Certifications
- CE, FCC Class A, RoHS
Packing List
- Packing List
- 1 KS310-IMX6 Touch Panel PC 1 Quick Installation Guide Note: Please choose "KS310-IMX6 product page > Download button" to download the Driver and Manual.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS310-204P6L | 750-KS3100-200G | 10.1" Touch Panel PC, Freescale i.MX6 DualLite, 2GB DDR3, 4GB eMMC, RJ-45, HDMI, SD card socket, 2 USB, 2 COM, 12-bit DIO, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Power Adapter | 671-106012-000G | 60W, 12V/5A, Level 6, RoHS |
| Panel Mount | 761-KS2020-000G | 10.1" Panel PC Panel Mount kit |
| Wall Mount | 761-TPC000-000G | Standard Panel PC Wall Mount kit |
| Power Cord | 785-PWRD | Power cord, Standards (USA/EUR/CH), 1.8m, RoHS |
