KSX215P-EHL

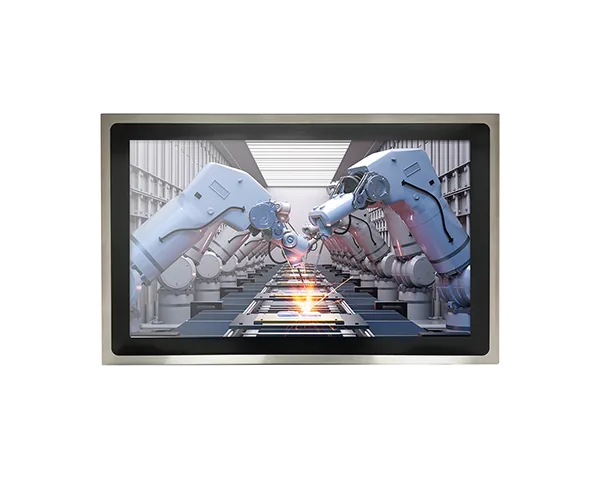

KSX215P-EHL, Industrial Touch Panel PC with Intel® Celeron®, designed with full IP66 & 69K rating design which is ideal for automation/transportation/outdoor applications.
- Touch Type Projected Capacitive Multi-touch
- IP Rating Full IP66 & 69K Rating
- Multiple Expansions 1 x M.2 2242/2280/3052 B Key, 1 x M.2 2230 E Key, 1 x Nano SIM
- Construction 304 Stainless steel chassis
- Mounting Type VESA Mount
- Wide Voltage Support 9-36V
Főbb jellemzők
Tanúsítványok
#9~36V DC-in
#IP66
#IP69K
#Multiple Expansion
#DDR4
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Touch Type Projected Capacitive Multi-touch
- IP Rating Full IP66 & 69K Rating
- Multiple Expansions 1 x M.2 2242/2280/3052 B Key, 1 x M.2 2230 E Key, 1 x Nano SIM
- Construction 304 Stainless steel chassis
- Mounting Type VESA Mount
- Wide Voltage Support 9-36V
System
- Processor
- Intel® Celeron® J6413 Processor, Quad Core, 1.5M Cache, 1.8GHz (3.0GHz), 10W
- Memory
- 1x SO-DIMM DDR4 4GB built-in
- BIOS
- AMI SPI 128Mbit (support UEFI boot only)
Display and Touch Screen
- Display
- 21.5" TFT LCD Panel
- Brightness
- 250 cd/m²
- Contrast
- 16:9
- Backlight Lifetime
- 50,000 Hrs LED Backlight
- Max. Resolution
- 1920 x 1080
- Touch Type
- Projected Capacitive
Graphics
- Controller
- Intel® UHD Graphics
- Feature
- OpenGL 4.5, DirectX 12, Open CL 1.2, Vulkan 1.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9 HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9
Storage
- External
- 128GB TLC SSD built-in
Expansion
- Interface
- 1 x M.2 2242/2280/3052 B Key (PCIe x1/SATA/USB2.0) 1 x M.2 2230 E Key(PCIe x1/USB2.0) 1 x Nano SIM socket (connected to M.2 B Key)

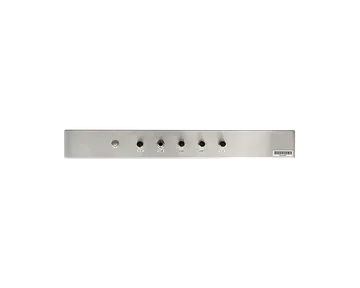

I/O
- Serial
- 1x M12 8pin COM1, RS-232/422/485, default RS-232, with waterproof cover
- USB
- 2x M12 8pin for 2* USB 2.0 with waterproof cover
- Ethernet
- 1x M12 8pin for GbE Lan with waterproof cover
- Power
- 1x M12 for DC input (9-36V in)
Power
- Type
- DC 9-36V
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64bit
- Linux
- Linux
Environment
- Operating Temperature
- 0°C ~ 50°C
- Storage Temperature
- -30°C ~ 70°C
- Relative Humidity
- 10 to 95% @ 40°C, non-condensing
Mechanism
- Construction
- 304 Stainless steel chassis
- IP Rating
- Full IP66 & 69K
- Mounting
- VESA mount 100 x 100
- Dimensions (W x H x D)
- 563 x 354 x 70mm
- Weight
- 9.5 Kg
Standards and Certifications
- Certifications
- CE/FCC Class A
Packing List
- Packing List
- · 1 KSX215P-EHL · 1 Poron foam · 1 M12 DC input cable · 1 M12 USB cable · 1 M12 LAN cable · 1 M12 Com cable
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KSX215P-EHL | 790-KSX215-000G | KSX215P-EHLW36-13 21.5" TFT WXGA Fan-less Panel PC with Projected Capacitive Touch, Intel® Celeron® J6413, DC Input 9-36V DC jack, F/G SYSTEM RoHS |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
