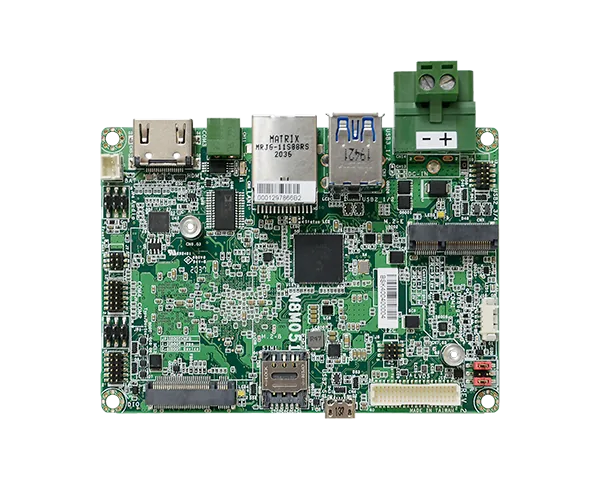

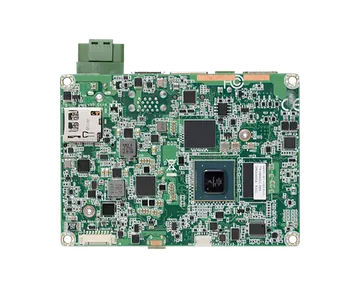

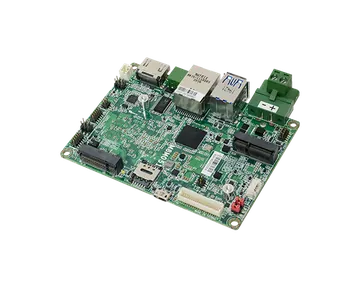

M8M051
2.5" Pico-ITX, NXP i.MX 8M Series, 1 LPDDR4 memory down, 1 M.2 B, 1 M.2 E, 1 LAN, 1 Micro SD, 2 USB 3.1 Gen1, 3 USB 2.0, 3 COM, 1 HDMI/LVDS, Yocto 2.5 on eMMC, Android 9.0, -5 to 65°C, -30 to 80 °C
- NXP i.MX 8M Processors
- Single Channel LPDDR4 up to 3200 MHz
- Single Display: HDMI/LVDS
- HDMI: resolution up to 4096x2160 @60Hz / LVDS: resolution up to 1920x1080 @60Hz
- Multiple Expansion: 1 M.2 B Key, 1 M.2 E Key
- Rich I/O: 1 Intel GbE, 3 COM, 2 USB 3.1 Gen1, 3 USB 2.0
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#NXP
#CAN-Bus
#ARM
#Compact Size
#Android
#HDMI
#Multiple Expansion
#DDR4
#Low Power Consumption
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
#NXP i.MX 8M
Főbb jellemzőkKey features
- NXP i.MX 8M Processors
- Single Channel LPDDR4 up to 3200 MHz
- Single Display: HDMI/LVDS
- HDMI: resolution up to 4096x2160 @60Hz / LVDS: resolution up to 1920x1080 @60Hz
- Multiple Expansion: 1 M.2 B Key, 1 M.2 E Key
- Rich I/O: 1 Intel GbE, 3 COM, 2 USB 3.1 Gen1, 3 USB 2.0
System
- Processor
- i.MX 8M applications processors NXP i.MX 8M Quad Cortex-A53, 1.5GHz (Commercial) NXP i.MX 8M Dual Cortex-A53, 1.5GHz (Commercial) NXP i.MX 8M Quad Cortex-A53, 1.3GHz (Industrial) NXP i.MX 8M Dual Cortex-A53, 1.3GHz (Industrial)
- Memory
- 2GB/4GB Memory Down Single Channel LPDDR4 up to 3200 MHz
Graphics
- Controller
- GC7000 Lite
- Feature
- OpenVG 1.1, OGL ES 3.1, Vulkan, OCL 1.2 FP VPU Decode: 4Kp60 HEVC H.265, VP9, 4Kp60 H.264
- Display
- 1 x HDMI (default) 1 x LVDS HDMI: resolution up to 4096x2160 @60Hz LVDS: resolution up to 1920x1080 @60Hz
- Single Display
- HDMI or LVDS
Expansion
- Interface
- 1 x M.2 B key 3042/2242 (USB 3.1 Gen1), Nano SIM slot support 1 x M.2 E key 2230 (PCIe x1/USB 2.0)
Audio
- Audio Codec
- SGTL5000
Ethernet
- Controller
- 1 x AR8035 Ethernet (10/100/1000Mbps)

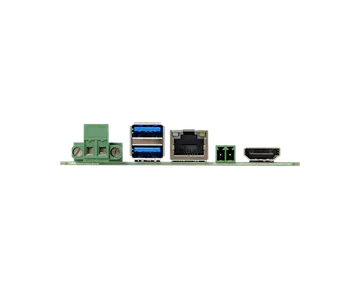

Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- Serial
- 1 x RS485
- USB
- 2 x USB 3.1 Gen1 1 x Micro USB 2.0 (Download mode)
- Display
- 1 x HDMI
Internal I/O
- Serial
- 1 x RS232 1 x RS-232/422/485 (2 x 6 pin header, 1.27mm pitch)
- USB
- 2 x USB 2.0 (1.27mm pitch)
- Display
- 1 x LVDS LCD Panel Connector 1 x Backlight Power
- Audio
- 1 x Audio (Line-out/Mic-in, 2.00mm pitch)
- DIO
- 1 x 8-bit DIO (2 x 6 header, 1.27mm pitch)
- SD
- 1 x Micro SD Slot
- CANBus
- 1 x CANBus 2.0
- I2C
- 1 x I2C (1.27mm pitch)
- eMMC
- Support eMMC 5.1 16GB on board (default) Support up to 64GB (opt.)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- Single 12V +/-10% DC
- Connector
- 2-poles Terminal Block (default) DC Jack (available upon request)
- Consumption
- Typical: Quad:12V @ 0.2A (2.4Watt) Max.: Quad:12V @ 0.38A (4.56Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support
- Yocto 2.5 on eMMC (default) Android 9.0 (option)
Environment
- Temperature
- Operating: -5 to 65°C; -30 to 80 °C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- i.MX 8MQuad: 1,311,832 hrs @ 25°C; 637,427 hrs @ 45°C; 374,475 hrs @ 60°C; 189,510 hrs @ 80°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 2.5" SBC Form Factor 100mm (3.94") x 72mm (2.83")
- Height
- PCB: 1.6mm Top Side: 15mm Bottom Side: 4mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 M8M051 board 1 Terminal block for RS485 (COM3) 342-361021-000G 1 Heat spreader (Height: 11mm) A71-808334-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| M8M051-BCC-41QDC | 770-M8M0511-000G | Quad core Processor, 4GB Memory, 16GB eMMC, 1 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 3 USB 2.0, 12VDC, Fanless Thermal, -5 to 65°C |
| M8M051-BCC-21DLC | 770-M8M0511-100G | Dual core Processor, 2GB Memory, 16GB eMMC, 1 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 3 USB 2.0, 12VDC, Fanless Thermal, -5 to 65°C |
| M8M051-ECC-41QDI | 770-M8M0511-200G | Quad core Processor, 4GB Memory, 16GB eMMC, 1 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 3 USB 2.0, 12VDC, Fanless Thermal, -30 to 80°C |
| M8M051-ECC-21DLI | 770-M8M0511-300G | Dual core Processor, 2GB Memory, 16GB eMMC, 1 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 3 USB 2.0, 12VDC, Fanless Thermal, -30 to 80°C |
| Item Name | Part Number | Description |
|---|---|---|
| 2 pole terminal to DC jack cable | A81-004013-000G | |
| Power adapter | 671-106012-000G | 60W, 12V, DC Jack |
| Heat spreader | A71-008150-000G | Length: 19.4mm |
| USB 2.0 cable | A81-001084-016G | Length: 200mm |
| Audio cable | A81-022031-016G | Length: 300mm |
| COM port cable | A81-015088-016G | Length: 250mm, COM2/4 port |
| Debug console with cable | 770-IMX8M1-000G | Length: 500mm |
