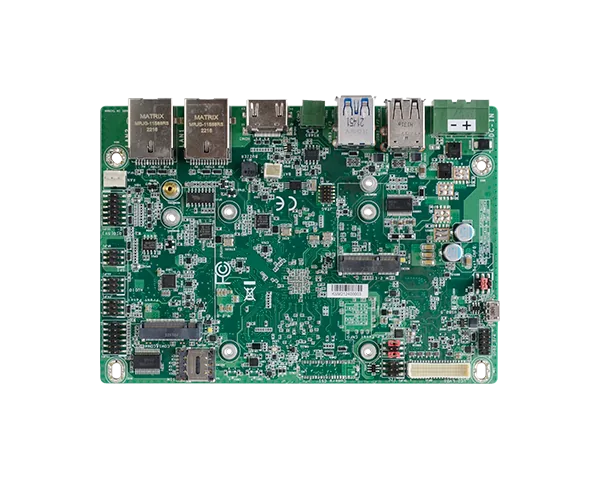

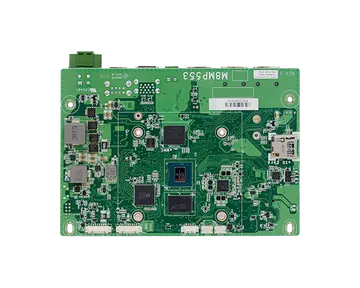

M8MP553
3.5" SBC, NXP® i.Mx 8M Plus Series, 1 DDR4 Memory Down, 1 M.2 B key, 1 M.2 E key, 1 Nano SIM slot, 1 uSD slot, 1 HDMI, 1 LVDS, 1 Micro USB OTG, 2 USB 3.1 Gen1, 4 USB 2.0, 2 LAN, 3 COM, 1 I2C, 2 CANBus, 1 Camera CSI, 9~36V, Fanless
- ARM® i.Mx8M plus-based Processor for 30% performance enhancement
- Industry-Leading Wide Voltage Support 9 to 36V
- Ultra-High-Speed Connectivity for 4G/5G Edge Gateway
- Outstanding Graphic Performance, supports LVDS and HDMI with dual display
- CAN bus for automation equipment integration
- 1 M.2 2230 E key, 1 3052 B key
#Edge AI Computing
#NXP
#IoT
#5G
#ARM
#Fanless Design
#Compact Size
#4K2K Display
#Linux
#Android
#HDMI
#Multiple Expansion
#DDR4
#Low Power Consumption
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
#NXP i.MX 8M
Főbb jellemzőkKey features
- ARM® i.Mx8M plus-based Processor for 30% performance enhancement
- Industry-Leading Wide Voltage Support 9 to 36V
- Ultra-High-Speed Connectivity for 4G/5G Edge Gateway
- Outstanding Graphic Performance, supports LVDS and HDMI with dual display
- CAN bus for automation equipment integration
- 1 M.2 2230 E key, 1 3052 B key
System
- Processor
- i.MX 8M plus applications processors MIMX8ML6CVNKZAB (Industrial), Quad 1.6GHz, VPU/ISP/CAN FD, -40~105°C MIMX8ML3CVNKZAB (Industrial), Dual 1.6GHz, VPU/ML/ISP/CAN FD, -40~105°C
- Memory
- 2GB/4GB/8GB LPDDR4 Memory Down
Graphics
- Controller
- GC7000UL
- Feature
- HW Decode: 1080p60 H.265,H.264, VP9, VP8 HW Endcode: 1080p60 H.265,H.264
- Display
- 1 x HDMI 1 x LVDS HDMI: resolution up to 1920x1080 @60Hz LVDS: resolution up to 1920x1200 @60Hz
- Dual Displays
- LVDS + HDMI Android:support single output
Storage
- eMMC
- 1 x eMMC 5.1 with default 16GB (up to 64GB)
Expansion
- Interface
- 1 x M.2 B key 3052/2242 (USB 3.1 Gen2/USB 2.0) 1 x M.2 E key 2230 (PCIe x1/USB 2.0) 1 x Nano SIM slot
Audio
- Audio Codec
- Audio codec SGTL5000
Ethernet
- PHY
- AR8035

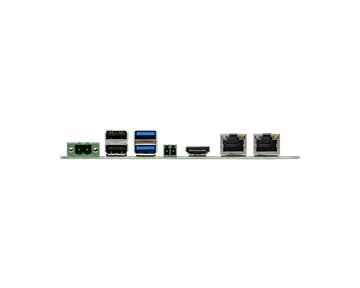

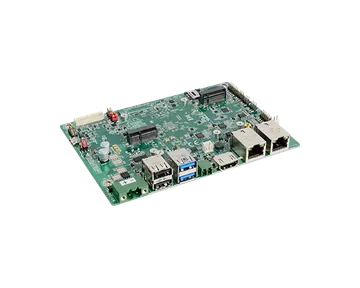

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS485 (2-wire)
- USB
- 2 x USB 3.1 Gen1 2 x USB 2.0
- Display
- 1 x HDMI
Internal I/O
- Serial
- 1 x RS232 1 x RS232/422/485 (2.0mm pitch)
- USB
- 2 x USB 2.0 (2.00mm pitch, the 2nd USB is opt. from M.2 3052) 1 x Micro USB OTG
- Display
- 1 x LVDS LCD Panel connector 1 x LCD/Intverter Power
- Audio
- 1 x Audio (Line-out/Mic-in)
- DIO
- 1 x 8-bit DIO
- SD
- 1 x uSD card
- CANBus
- 2 x CAN bus 2.0b on Industrial CPU sku
- I2C
- 1 x I2C / Touch
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- Wide Range 9~36VDC Note1: Support 9V~24VDC in -30~80°C operating temperature. Note2: Support 36VDC within 70°C operating temperature.
- Connector
- 2-pole terminal block (default) Co-lay 4-pin vertical power connector
- Consumption
- Typical: i.MX 8M Plus Quad, 12V, 3.6Watt Max.: i.MX 8M Plus Quad, 12V, 5.28Watt
- Battery
- CR2032 Coin Cell
OS Support
- OS Support
- Linux Yocto 5.0 (default) Debian 12 (upon request) Android 10 (upon request)
Environment
- Temperature
- Operating: -30 to 80 °C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- i.MX 8M Plus Quad: 632,710 hrs @ 25°C; 386,370 hrs @ 45°C ; 252,204 hrs @ 60°C; 138,544 hrs @ 80°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
- Height
- PCB: 1.6mm Top Side: 15mm Bottom Side: 4mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 M8MP553 board 1 Terminal block for RS485 (COM3) 342-361021-000G 1 Heatsink (Height: 21mm) A71-008168-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| M8MP553-ECC-41QDI | 770-8MP5532-200G | Quad Core Processor, 4 GB Memory Down, eMMC 16 GB, 2 GbE, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 4 USB 2.0, Power 9~36VDC, fanless design, -30 to 80°C |
| M8MP553-ECC-21DLI | 770-8MP5532-300G | Dual Core Processor, 2 GB Memory Down, eMMC 16 GB, 2 GbE, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 4 USB 2.0, Power 9~36VDC, fanless design, -30 to 80°C |
| M8MP553-ECC-81QDI | 770-8MP5532-400G | Quad core Processor, 8 GB Memory Down, eMMC 16 GB, 2 GbE, 1 RS-232, 1 RS-232/422/485, 2 USB 3.1 Gen1, 4 USB 2.0, Power 9~36VDC, fanless design, -30 to 80°C |
| Item Name | Part Number | Description |
|---|---|---|
| 2 pole terminal to DC jack cable | A81-004013-000G | |
| Power adapter | 671-106012-000G | 60W, 12V, DC Jack |
| USB 2.0 cable | A81-001032-016G | Length: 200mm |
| COM port cable | A81-009595-016G | Length: 250mm, COM1/4 |
| Audio | A81-022031-016G | Length: 300mm |
| Heat spreader | A71-808351-000G | Height: 11mm |
| Debug console with cable | 770-IMX8M1-000G | Length: 500mm |
