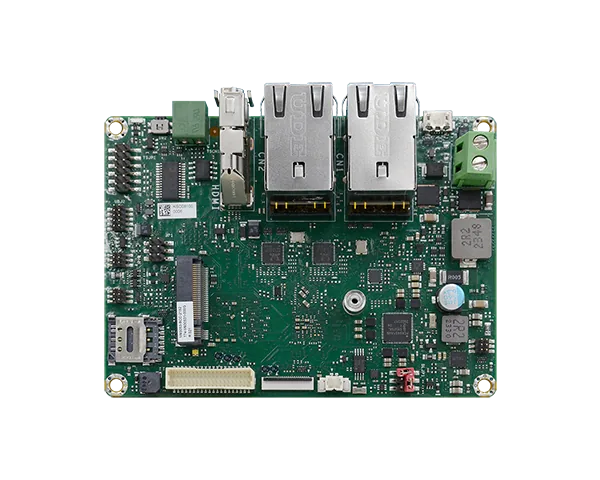

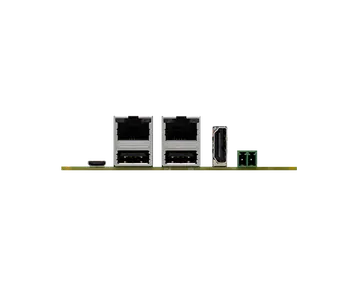

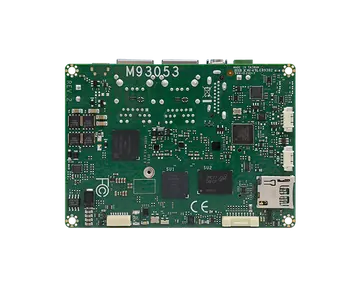

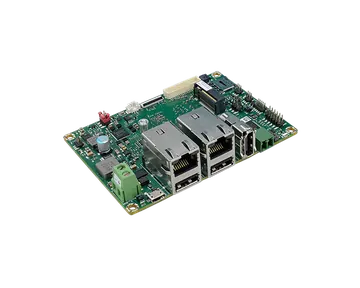

M93053
2.5" Pico-ITX, NXP i.MX93 series, LPDDR4 Memory Down, 1 M.2 B Key, 2 GbE LAN, 3 COM, 4 USB 2.0, 1 Micro USB 2.0, LVDS/HDMI, 9~36VDC, CAN bus, Linux Yocto 4.0, -5 to 65°C, -30 to 80°C
- NXP i.MX93 platform, target on entry level application
- Wide Voltage support 9~36VDC
- Two GbE Lan for automation application
- CAN bus support
- M.2 3042 support
Főbb jellemzők
Tanúsítványok
#9~36V DC-in
#LVDS
#NXP i.MX 93 Applications Processors
#LPDDR4
#CAN-Bus
#ARM
#Fanless Design
#Compact Size
#Linux
#HDMI
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- NXP i.MX93 platform, target on entry level application
- Wide Voltage support 9~36VDC
- Two GbE Lan for automation application
- CAN bus support
- M.2 3042 support
System
- Processor
- i.MX 93 applications processor MIMX9352CVVXMAB, Dual core, 1.7GHz, NPU, -40°C~105°C
- Memory
- 2GB LPDDR4 Memory Down
Graphics
- Controller
- 2D Graphics: PXP Engine
- Feature
- Blending/Composition, Resize, Color Space Conversion
- Display
- 1 x HDMI 1.4 1 x LVDS HDMI: resolution up to 1920x1080 @60Hz LVDS: resolution up to 1366x768 @60Hz
- Single Display
- LVDS or HDMI
Storage
- eMMC
- 1 x eMMC 5.1 with default 16GB (up to 64GB)
Expansion
- Interface
- 1 x M.2 B key 3042 (USB 2.0) 1 x Nano SIM slot
Ethernet
- PHY
- RTL8211
Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS485 (2-wire)
- USB
- 2 x USB 2.0 1 x Micro USB 2.0 (OTG)
- Display
- 1 x HDMI
- Download Mode Switch
- 1 x Download mode switch
Internal I/O
- Serial
- 1 x RS232, 1x RS232/422/485 on 2x6 header
- USB
- 2 x USB 2.0
- Display
- 1 x LVDS LCD Panel connector (Default: 12V/Opt.: 5V) 1 x LCD Backlight Power (Default: 5V/Opt.: 3.3V)
- DIO
- 1 x 8-bit DIO
- SD
- 1 x uSD card
- CANBus
- 1 x CAN bus 2.0b
- I2C
- 1 x I2C / Touch
- Other I/O
- 1 x SPI, 1 x Front Panel, 1 x UART debug
- Camera
- 1 x MIPI-CSI for 2-lanes camera, reference to RPI-CAM-MIPI Camera adapter (AR0144 Sensor)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- Wide Range 9~36VDC
- Connector
- 2-pole terminal block
- Consumption
- Typical: 9V @ 0.28A (2.52Watt); 36V @ 0.10A (3.60Watt) Max.: 9V @ 0.36A (3.24Watt); 36V @ 0.11A (3.96Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Linux
- Linux Yocto 5.0 (Kernel 6.6.23)
Environment
- Temperature
- Operating: -5°C ~ 65°C, -40°C~85°C Storage: -40°C ~ 85°C
- Humidity
- Operating: 5% ~ 90% RH Storage: 5% ~ 90% RH
- MTBF
- MIMX9352CVVXMAB, Dual core: 1,470,688 hrs @ 25°C; 716,436 hrs @ 45°C ; 418,703 hrs @ 60°C; 295,368 hrs @ 70°C; 178,343 hrs @ 85°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 2.5" SBC Form Factor 100mm (3.94") x 72mm (2.83")
- Height
- PCB: 1.6mm Top Side: 21.08mm Bottom Side: 3.70mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 M93053 board 1 Terminal block for RS485 (COM3), 342-361021-000G 1 Heat spreader (Height: 11mm), A71-808354-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| M93053-BCC-2152 | 770-M930531-000G | Dual core Processor, 2GB Memory, 16GB eMMC, 2 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 5 USB 2.0, 9~36VDC, Fanless Thermal, -5°C~65°C |
| M93053-ECC-2152 | 770-M930531-100G | Dual core Processor, 2GB Memory, 16GB eMMC, 2 GbE, 1 RS-485, 1 RS-232, 1 RS-232/422/485, 5 USB 2.0, 9~36VDC, Fanless Thermal, -40°C~85°C |
| Item Name | Part Number | Description |
|---|---|---|
| 2 pole terminal to DC jack cable | A81-004013-000G | |
| Power adapter | 671-106012-000G | 60W, 12V, DC Jack |
| USB 2.0 cable | A81-001084-016G | Length: 200mm |
| COM port cable | A81-015088-016G | Length: 250mm, COM4/5 port |
| Debug console with cable | 770-IMX8M1-000G | Length: 500mm |
| Heat sink | A71-008358-000G | Height: 17.7mm |
