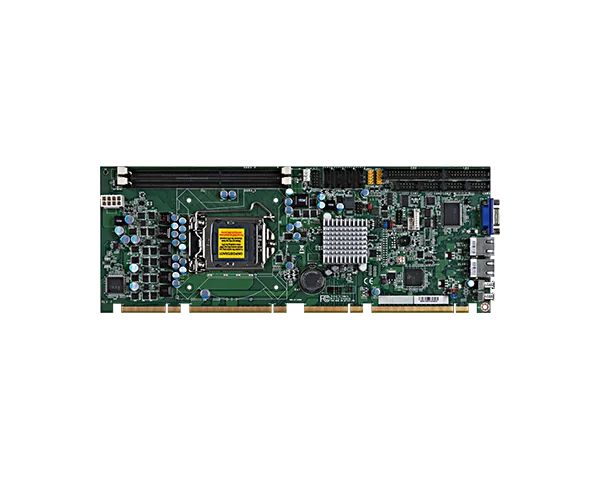

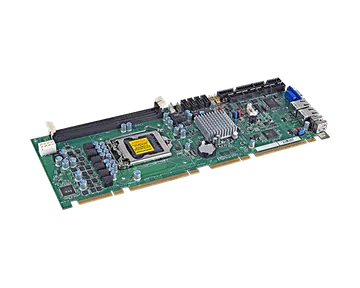

PIC-H61
MEMORY : 2 DDR3 DIMM up to 16GB EXPANSION(via gold fingers) : 1 PCIe x16, 4 PCIe x1, 4 PCI, 4 USB DISPLAY OUTPUTS : 1 DVI-D (optional), 1 VGA LAN : 2 LAN COM : 4 COM USB : 6 USB 2.0 PARALLEL : 1 Parallel STORAGE : 4 SATA 2.0, 1 FDD DIO : 8-bit DIO DIMENSIONS : 338mm x 122mm (13.3" x 4.8")
- Rich I/O: 2 Intel GbE, 4 COM, 10 USB 2.0
- Expansion: 1 PCIe x16, 4 PCIe x1, 4 PCI
- 1 DVI-D (optional), 1 VGA
- 2 DDR3 DIMM up to 16GB
- 3rd/2nd Gen Intel® Core™ with Intel® H61
- 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#PCIe x16
#Windows
#DVI-D
#VGA
#DDR3
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Rich I/O: 2 Intel GbE, 4 COM, 10 USB 2.0
- Expansion: 1 PCIe x16, 4 PCIe x1, 4 PCI
- 1 DVI-D (optional), 1 VGA
- 2 DDR3 DIMM up to 16GB
- 3rd/2nd Gen Intel® Core™ with Intel® H61
- 7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)
System
- Processor
- 3rd generation Intel® Core™ processors (22nm process technology) Intel® Core™ i7-3770 (8M Cache, up to 3.9GHz); 77W Intel® Core™ i5-3550S (6M Cache, up to 3.7GHz); 65W Intel® Core™ i3-3220 (3M Cache, 3.3GHz); 55W Intel® Pentium® G2120 (3M Cache, 3.1 GHz); 65W 2nd generation Intel® Core™ processors (32nm process technology) Intel® Core™ i7-2600 (8M Cache, up to 3.8 GHz); 95W Intel® Core™ i5-2400 (6M Cache, up to 3.4 GHz); 95W Intel® Core™ i3-2120 (3M Cache, 3.3 GHz); 65W Intel® Pentium® G850 (3M Cache, 2.9 GHz); 65W
- Chipset
- Intel® H61
- Memory
- One 204-pin SODIMM up to 16GB Dual channel DDR3 1333/1600MHz (3rd generation processors) Dual channel DDR3 1066/1333MHz (2nd generation processors)
- BIOS
- AMI SPI 64Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- Supports 6 Graphics Execution Units (EUs) Intel® Clear Video Technology DirectX Video Acceleration (DXVA) support for accelerating video processing
- Display
- 1 x VGA 1 x DVI-D(Optional) VGA : supports up to 2048x1536 @ 75Hz resolution DVI-D : supports up to 1920x1080 @ 60Hz resolution (Optional)
Expansion
- Interface
- 1 x PCIe x16 (Gen 3.0) (Gen 2.0) 4 x PCIe x1 4 x PCI 4 x USB 2.0
Ethernet
- Controller
- 2 x Intel® W82574L PCIe (10/100/1000Mbps)

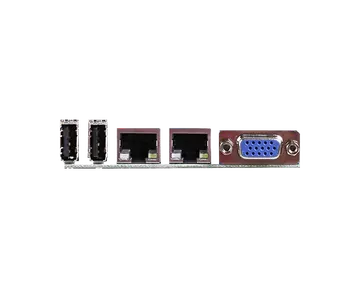

Rear I/O
- Ethernet
- 2 x GbE (RJ45)
- USB
- 2 x USB 2.0
- Display
- 1 x VGA (DB-15)
Internal I/O
- Serial
- 1 x RS232/422/485 3 x RS232
- USB
- 4 x USB 2.0
- SATA
- 4 x SATA 2.0 (up to 3Gb/s)
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- ATX
- Connector
- 8-pin 12V power
OS Support
- OS Support
- Windows XP Professional x86 & SP3 (32-bit) Windows XP Professional x64 & SP2 (64-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit)
Environment
- Temperature
- Operating: 0°C to 60°C Storage: -20°C to 85°C
- Humidity
- Operating: 10% to 90% RH Storage: 10 to 90% RH
Mechanism
- Dimensions
- 338mm (13.3") x 122mm (4.8")
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS
Packing List
- Packing List
- 1 PIC-H61 board 2 USB port cables (with bracket) 2 COM port cables (with bracket) 2 Serial ATA data cables
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Item Name | Part Number | Description |
|---|---|---|
| USB port cable | TBD | |
| COM port cable | TBD | |
| Serial ATA data cable | TBD | |
| Serial ATA power cable | TBD |
