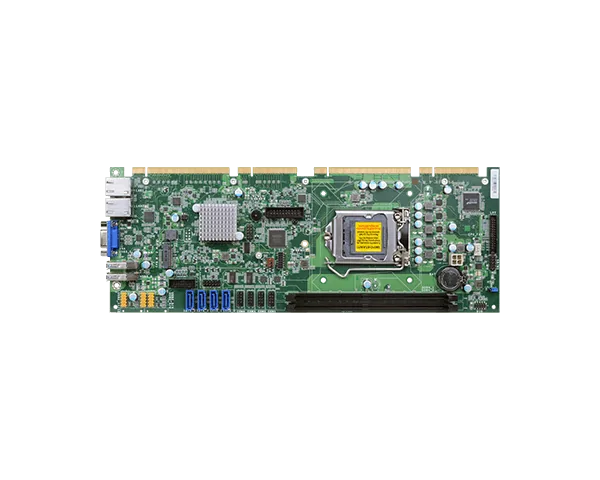

PIC-Q170/H110
Full Size PICMG 1.3, 7/6th Gen Intel® Core™, 2 DDR4, 1 PCIe x16, 4 PCIe x1, 4 PCI 1 DVI-D, 1 VGA
- 7/6th Gen Intel® Core™ with Intel® Q170/H110
- Rich I/O: 2 Intel GbE, 4 USB 3.0, 6 USB 2.0
- 2 DDR4 DIMM up to 32GB
- Expansion Interface: 1 PCIe x16 Gen. 3, 4 PCIe x1 Gen. 3, 4 PCI, 1 M.2 2280 M Key
- 2 independent displays: VGA + DVI-D (available upon request)
- DVI resolution up to 1920x1200 @ 60Hz
- 10-Year CPU Life Cycle Support Until Q2' 25 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#4K2K Display
#PCIe x16
#Windows
#Linux
#DVI-D
#VGA
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 7/6th Gen Intel® Core™ with Intel® Q170/H110
- Rich I/O: 2 Intel GbE, 4 USB 3.0, 6 USB 2.0
- 2 DDR4 DIMM up to 32GB
- Expansion Interface: 1 PCIe x16 Gen. 3, 4 PCIe x1 Gen. 3, 4 PCI, 1 M.2 2280 M Key
- 2 independent displays: VGA + DVI-D (available upon request)
- DVI resolution up to 1920x1200 @ 60Hz
- 10-Year CPU Life Cycle Support Until Q2' 25 (Based on Intel IOTG Roadmap)
System
- Processor
- 7th Generation Intel® Core™ Processors, LGA1151 Intel® Core™ i7-7700 Processor, Four Core, 8M, 3.6GHz (4.2GHz), 65W Intel® Core™ i7-7700T Processor, Four Core, 8M, 2.9GHz (3.8GHz), 35W Intel® Core™ i5-7500 Processor, Four Core, 6M, 3.4GHz (3.8GHz), 65W Intel® Core™ i5-7500T Processor, Four Core, 6M, 2.7GHz (3.3GHz), 35W Intel® Core™ i3-7101E Processor, Dual Core, 3M, 3.9GHz , 54W Intel® Core™ i3-7101TE Processor, Dual Core, 3M, 3.4GHz , 35W Intel® Core™ G3930E Processor, Dual Core, 2M, 2.9GHz, 54W Intel® Core™ G3930TE Processor, Dual Core, 2M, 2.7GHz, 35W 6th Generation Intel® CoreTM Processors, LGA1151 Intel® Core™ i7-6700 Processor, Four Core,8M, 3.4GHz (4.0GHz), 65W Intel® Core™ i7-6700TE Processor, Four Core,8M, 2.4GHz (3.4GHz), 35W Intel® Core™ i5-6500 Processor, Four Core,6M, 3.2GHz (3.6GHz), 65W Intel® Core™ i5-6500TE Processor, Four Core,6M, 2.3GHz (3.3GHz), 35W Intel® Core™ i3-6100 Processor, Dual Core,4M, 65W Intel® Core™ i3-6100TE Processor, Dual Core,4M, 2.7GHz, 35W Intel® Pentium® G4400 Processor, Dual Core,3M, 3.3GHz, 65W Intel® Pentium® G4400TE Processor, Dual Core,3M, 2.9GHz, 35W Intel® Celeron® G3900 Processor, Dual Core,2M, 2.8GHz, 65W Intel® Celeron® G3900TE Processor, Dual Core, 2M, 2.6GHz, 35W
- Chipset
- [PIC-Q170] Intel® Q170 Chipset [PIC-H110] Intel® H110 Chipset
- Memory
- Two 288-pin DIMM up to 32GB Dual Channel DDR4 1866/2133MHz
- BIOS
- Insyde SPI 128Mbit
Graphics
- Display
- 1 x VGA 1 x DVI-D (available upon request) VGA: resolution up to 1920x1200 @ 60Hz DVI: resolution up to 1920x1200 @ 60Hz
- Dual Displays
- VGA + DVI-D (available upon request)
Expansion
- Interface
- [PIC-Q170] 1 x PCIe x16 Gen. 3 [PIC-Q170] 4 x PCIe x1 Gen. 3 [PIC-Q170] 4 x PCI [PIC-Q170] 1 x M.2 M key 2280 (PCIe/SATA3.0) [PIC-H110] 1 x PCIe x16 Gen. 3 [PIC-H110] 4 x PCIe x1 Gen. 3 [PIC-H110] 4 x PCI
Ethernet
- Controller
- [PIC-Q170] 1 x Intel® I219LM PHY [PIC-Q170] 1 x Intel® I211AT PCIe (10/100/1000Mbps) (only Core i7/i5 support iAMT) [PIC-H110] 1 x Intel® I219V PHY [PIC-H110] 1 x Intel® I211AT PCIe (10/100/1000Mbps)

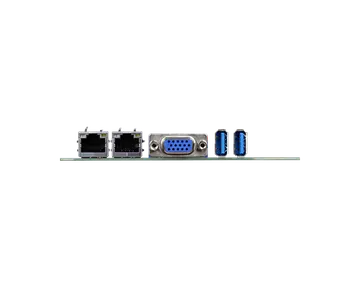

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 2 x USB 3.0
- Display
- 1 x VGA 1 x DVI-D (available upon request)
Internal I/O
- Serial
- 2 x RS232/422/485 (2.54mm pitch) 2 x RS232 (2.54mm pitch)
- USB
- [PIC-Q170] 2 x USB 3.0 (2.0mm pitch) [PIC-Q170] 6 x USB 2.0 (2.54mm pitch) [PIC-H110] 4 x USB 2.0 (2.54mm pitch)
- SATA
- 4 x SATA 3.0 (up to 6Gb/s)
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
- Other I/O
- ATX 12V Power Connector and Expansion Goldfinger
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- fTPM 2.0/dTPM 2.0(optional)
Power
- Consumption
- Idle: i7-6700 65W: 12V @ 0.57A (6.84W), 5V @ 0.72A (3.6W), 3.3V @ 0.41A (1.353W) Max: i7-6700 65W: 12V @ 7.19A (86.28W), 5V @ 0.94A (4.7W), 3.3V @ 0.41A (1.353W)
OS Support
- Microsoft
- Windows 7 (32/64 bit) Windows 8.1 (64 bit) Windows 10 IoT Enterprise (64 bit) Note: 7th Gen Intel Core processors only support Win 10.
- Linux
- Linux
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH
- MTBF
- PIC-Q170/H110: 666,097 hrs @ 25°C; 404,733 hrs @ 45°C; 263,381 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- Full Size PICMG 1.3 338mm (13.3") x 126.39mm (4.98")
- Height
- PCB: 1.6mm Top Side: 20.95mm Bottom Side: 4.4mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- 1 PIC-Q170/H110 board 1 Dual USB2.0 port cable (with bracket) A81-001066-016G 2 COM port cable (with bracket) 332-700730-104G 2 Serial ATA data cable 332-553001-005G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Item Name | Part Number | Description |
|---|---|---|
| Dual USB2.0 port cable | A81-001066-016G | with bracket |
| COM port cable | A81-015011-001G | with bracket |
| Serial ATA data cable | 332-553001-005G | |
| DIO cable | A81-009133-018G | |
| PS2 cable | 332-353016-009G | |
| LPT cable | A81-003006-000G | |
| DVI-D board | 774-PICDVI-000G | with cable |
