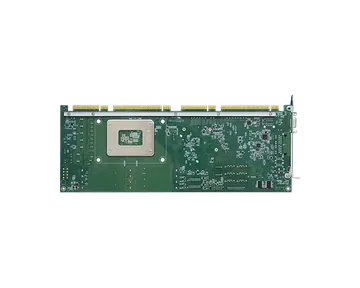

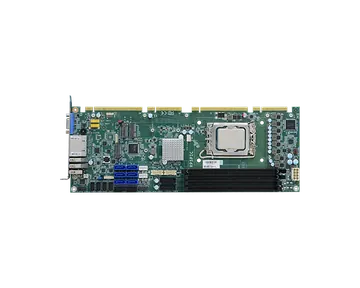

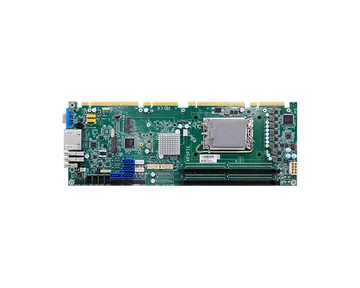

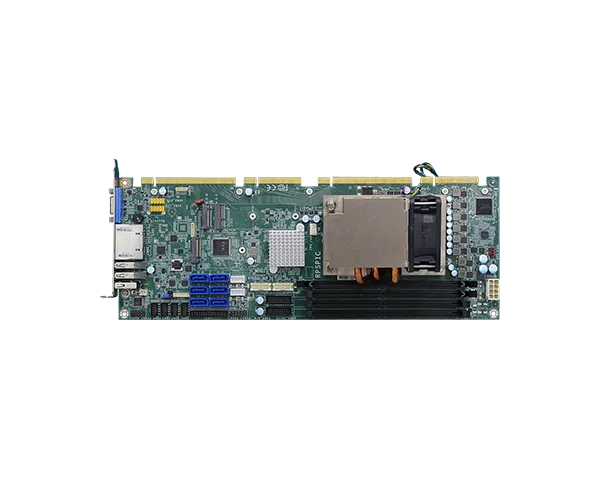

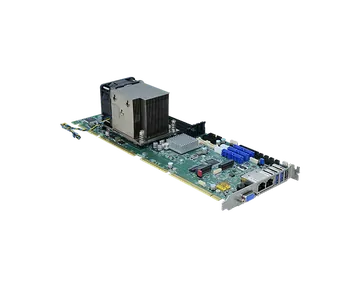

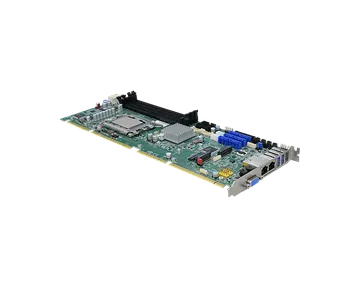

RPSPIC
Full Size PICMG 1.3, BTL-S/14th/13th/12th Gen Intel® Core™, 2/4 DDR5, M.2 E Key, M.2 M Key, M.2 A Key for M2A-OOB, VGA, DP, HDMI, 2 Intel 2.5GbE, 4 COM, 6 USB 3.2, 2 USB 2.0, 6 SATA 3.0
- BTL-S/14th/13th/12th Gen Intel® Core Processors with Intel® R680E/H610E chipset
- 4/2 DDR5 UDIMM up to 192GB
- Supports 3 independent displays: VGA, 2 DFI display module (DP/VGA/HDMI)
- Supports up to 2K resolution
- Multiple expansion: 1 M.2 E Key (USB/PCIe/CNVi), 1 M.2 M Key (PCIe), 1 M.2 A Key for M2A-OOB
- Rich I/O: 2 Intel 2.5GbE, 4 COM, 6 USB 3.2, 2 USB 2.0, 6 SATA 3.0
- Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)
- Support M2A-OOB
Főbb jellemzők
Tanúsítványok
#12th Gen Intel® Core™ Processor
#DDR5
#13th Gen Intel® Core™ Processor
#Windows 10
#M.2
#M2A-OOB
#Intel® Bartlett Lake-S Processors
#Out-Of-Band (OOB)
#14th Gen Intel® Core™ Processor
#IoT
#Windows 11
#Intel
#Windows
#Linux
#HDMI
#VGA
#DP
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- BTL-S/14th/13th/12th Gen Intel® Core Processors with Intel® R680E/H610E chipset
- 4/2 DDR5 UDIMM up to 192GB
- Supports 3 independent displays: VGA, 2 DFI display module (DP/VGA/HDMI)
- Supports up to 2K resolution
- Multiple expansion: 1 M.2 E Key (USB/PCIe/CNVi), 1 M.2 M Key (PCIe), 1 M.2 A Key for M2A-OOB
- Rich I/O: 2 Intel 2.5GbE, 4 COM, 6 USB 3.2, 2 USB 2.0, 6 SATA 3.0
- Typically supports 10-Year CPU Life Cycle Until Q1’32 (Based on Intel IOTG Roadmap)
- Support M2A-OOB
System
- Processor
- Intel® Bartlett Lake-S Hybrid LGA 1700 Socket Processors Intel® Core™ 7 251E (24 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ 7 251TE (24 Cores, 36M Cache, up to 5.4 GHz); 45W Intel® Core™ 5 221E (14 Cores, 24M Cache, up to 5.2 GHz); 65W Intel® Core™ 5 221TE (14 Cores, 24M Cache, up to 5.0 GHz); 45W Intel® Core™ 5 211E (10 Cores, 20M Cache, up to 4.9 GHz); 65W Intel® Core™ 5 211TE (10 Cores, 20M Cache, up to 4.8 GHz); 45W Intel® Core™ 3 201E (4 Cores, 12M Cache, up to 4.8 GHz); 60W Intel® Core™ 3 201TE (4 Cores, 12M Cache, up to 4.6 GHz); 45W Intel® 300 (2 Cores, 6M Cache, up to 3.9 GHz); 45W Intel® 300T (2 Cores, 6M Cache, up to 3.4 GHz); 35W 14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W Intel® 300 (2 Cores,6M Cache, 3.9 GHz); 46W Intel® 300T (2 Cores, 6M Cache, 3.4 GHz); 35W 13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W Intel® Core™ I9-13900 (24 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ I7-13700 (16 Cores, 30M Cache, up to 5.2 GHz); 65W Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W Intel® Core™ I5-13500 (14 Cores, 24M Cache, up to 4.8 GHz); 65W Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I5-13400 (10 Cores, 20M Cache, up to 4.6 GHz); 65W Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 4.4 GHz); 65W Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W Intel® Core™ I3-13100 (4 Cores, 12M Cache, up to 4.5 GHz); 65W Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W 12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W Intel® Core™ i9-12900(16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.7 GHz); 35W Intel® Core™ i7-12700 (12 Cores, 25M Cache, up to 4.8 GHz); 65W Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W Intel® Core™ i5-12500 (6 Cores, 18M Cache, up to 4.6 GHz); 65W Intel® Core™ i5-12400 (6 Cores, 18M Cache, up to 4.4 GHz); 65W Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W Intel® Core™ i3-12100 (4 Cores, 12M Cache, up to 4.3 GHz); 60W Intel® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W Intel® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W Intel® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W Intel® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W
- Chipset
- [RPSPIC-R680E] Intel® R680E Chipset [RPSPIC-H610E] Intel® H610E Chipset
- Memory
- [RPSPIC-R680E] 4 288-pin UDIMM up to 192GB (ECC/Non-ECC) [RPSPIC-R680E] Dual Channel DDR5 5600 MHz [RPSPIC-H610E] 2 288-pin UDIMM up to 96GB (Non-ECC) [RPSPIC-H610E] Dual Channel DDR5 5600 MHz
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics 700 series
- Feature
- · 3D graphics HW acceleration: DX12, Open GL 4.6, Vulkan 1.2 · HW Video Decode: 8K60 12b 4:2:0 HEVC/VP9/SCC 8K30 10b 4:2:0 AV1 5K60 10b 4:4:4 HEVC/VP9/SCC 4K60 8b 4:2:0 AVC · HW Video Encode: 8K30 or 5K60 8b/10b 4:2:0 HEVC/VP9/SCC 4K60 10b 4:4:4 HEVC/VP9/SCC 4K60 8b 4:2:0 AVC
- Display
- 1 x VGA 2 x DFI display extension port (DP/HDMI/VGA available) VGA: resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 1920x1080 @ 60Hz DP: resolution up to 1920x1200 @ 60Hz
- Triple Displays
- VGA + DFI display extension port (DP/HDMI/VGA available)
Expansion
- Interface
- [RPSPIC-R680E] 1 x M.2 2230 E Key (USB 2.0x1/CNVix1/PCIe3.0 x1) [RPSPIC-R680E] 1 x M.2 2280 M Key (PCIe 4.0x4) [RPSPIC-R680E] 1 x M.2 3042 A Key for M2A-OOB [RPSPIC-H610E] 1 x M.2 2230 E Key (USB 2.0x1/CNVix1/PCIe3.0 x1) [RPSPIC-H610E] 1 x M.2 3042 A Key for M2A-OOB
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- [RPSPIC-R680E] 1 x Intel® I226-LM (Core i9/i7/i5 support iAMT) [RPSPIC-R680E] 1 x Intel® I226-V (colay i210AT) [RPSPIC-H610E] 1 x Intel® I226-V [RPSPIC-H610E] 1 x Intel® I226-V (colay i210AT)

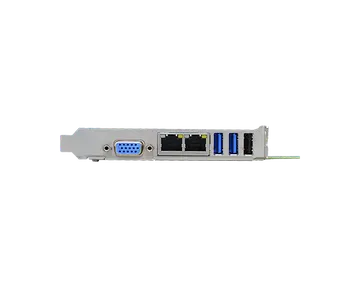

Rear I/O
- Ethernet
- 2 x 2.5GbE (RJ-45)
- USB
- 2 x USB 3.2 Gen2 1 x USB 2.0
- Display
- 1 x VGA
Internal I/O
- Serial
- 2 x RS232/422/485 w/o Power (2.0 pitch BOX) by BIOS select 2 x RS232 w/o Power, 2.0 pitch BOX
- USB
- [RPSPIC-R680E] 4 x USB 3.2 Gen1 BOX [RPSPIC-R680E] 4 x USB 2.0 (2x5 2.0mm pitch header) [RPSPIC-H610E] 4 x USB 2.0 (2x5 2.0mm pitch header)
- Display
- 2 x DFI display extension port (DP/HDMI/VGA available)
- Audio
- 1 x Front Audio Header (1 x Line-out, 1 x Mic-in)
- SATA
- [RPSPIC-R680E] 6 x SATA 3.0 (up to 6Gb/s) [RPSPIC-R680E] RAID 0/1/5/10 [RPSPIC-H610E] 4 x SATA 3.0 (up to 6Gb/s) [RPSPIC-H610E] RAID 0/1/5/10
- DIO
- 1 x 4 IN 4 OUT 8 BIT DIO
- SMBus
- 1 x SMBus & I2C
- LPT Port
- 1 x Parallel Port
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Nuvoton TPM 2.0
Power
- Type
- ATX
- Connector
- 8-pin CPU ATX 12V power Expansion Goldfinger
- Consumption
- [RPSPIC-R680E] Idle: Intel i9-14900E (65W): ATX PSU total 80.194W [RPSPIC-R680E] Max: Intel i9-14900E (65W): ATX PSU total 135.96W [RPSPIC-H610E] TBD
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11 LTSC
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 95% RH Storage: 5 to 95% RH
- MTBF
- RPSPIC-R680DB 379,337 hrs @ 25°C; 164,133 hrs @ 45°C; 73,750 hrs @ 60°C; Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- Full Size PICMG 1.3 338mm (13.3") x 126.39mm (4.98")
- Height
- PCB: 1.6mm TOP Side : 19.85mm TOP Side with cooler: 71.20mm BOT side: 2.35mm BOT side with cooler: 5.90mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA
Packing List
- Packing List
- • 1 RPSPIC-R680E/H610E board • 1 Cooler/Heat sink, A71-101161-000G • 1 SATA Cable, L=300mm, A81-002101-016G • 1 USB2.0 Cable (with bracket), L=350mm, A81-001066-016G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| RPSPIC-R680E | 770-RPSPIC1-000G | Intel® R680E Chipset, 2 2.5GbE, 4 ECC/Non ECC DDR5 UDIMM, 6 USB 3.2 Gen2, 2 USB 2.0, 4 COM, 6 SATA 3.0, dTPM, 8-pin ATX 12V power Expansion Goldfinger, Operating Temp.: -5 to 65°C |
| RPSPIC-H610E | 770-RPSPIC1-100G | Intel® H610E Chipset, 4 2.5GbE, 2 Non ECC DDR5 UDIMM, 2 USB 3.2 Gen2, 2 USB 2.0, 4 COM, 4 SATA 3.0, dTPM, 8-pin ATX 12V power Expansion Goldfinger, Operating Temp.: -5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| EXT-HDMI | 770-DP2HDM2-000G | DP-to-HDMI 1.4 MODULE CARD |
| EXT-VGA | 770-DP2VGA-000G | DP-to-VGA MODULE CARD |
| EXT-DP | 770-EXTDP1-000G | DP-to-DP MODULE CARD |
