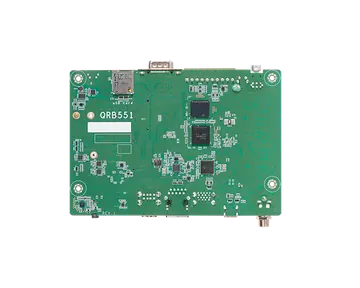

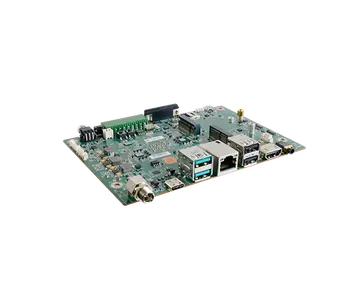

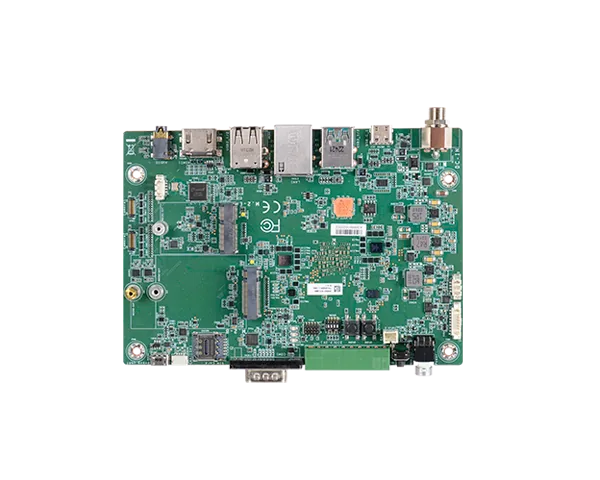

QRB551
3.5" SBC, Qualcomm QRB5165 Processor, LPDDR5, 1 GbE LAN, CAN bus, 1 M.2 E key 2230, 1 M.2 B key 3052/2242, 1 HDMI 1.4, 1 USB Type C DP, 1 uSD card, 2 USB 3.1 Gen1 Type A, 1 USB 2 Type A, 1 USB 3.1 OTG Type C, 2 USB 2.0, 1 COM, 1 CAN bus 2.0b, 1 Micro USB debug UART, 1 8-bit DIO terminal block
- Qualcomm QRB5165
- For Automation
- 1 GbE LAN: For automation application
- CAN bus: For automation equipments integration
- 2 M.2 Expansions: 1 M.2 E key 2230, 1 M.2 B key 3052/2242
Főbb jellemzők
Tanúsítványok
#Qualcomm® QRB5165
#M.2
#Qualcomm®
#CAN-Bus
#1G Ethernet
#Linux
#HDMI
#12V DC-in
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Qualcomm QRB5165
- For Automation
- 1 GbE LAN: For automation application
- CAN bus: For automation equipments integration
- 2 M.2 Expansions: 1 M.2 E key 2230, 1 M.2 B key 3052/2242
System
- Processor
- QRB5165, 8x Kryo 585 2.84Ghz
- Memory
- POP LPDDR5, 8GB
Graphics
- Controller
- Adreno 650 GPU
- Feature
- OpenGL ES 3.2
- Display
- 1 x HDMI Type A, w/o audio. 1080P support on Linux.
- Single Display
- HDMI
Storage
- UFS
- Support UFS 3.1, default 128GB
Expansion
- Interface
- 1 x M.2 B key 3052/2242 (USB3.1, reserve PCIex1) reference RM502G Quectel 1 x M.2 E key 2230 (PCIe x1) reference QCA6391 Wifi module 1 x Nano SIM slot
Audio
- Audio Codec
- Audio codec WCD9385
Ethernet
- Controller
- AX88179A USB3 to GbE controller

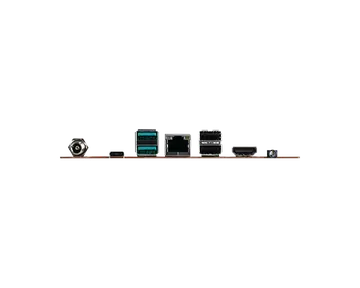

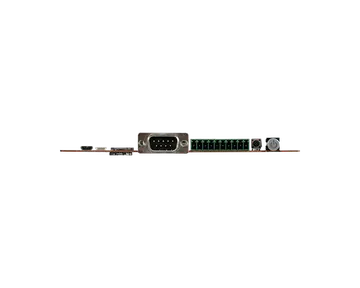

Rear I/O
- Ethernet
- 1 x GbE (RJ-45) (optional from rear USB2)
- Serial
- 1 x RS232/422/485 (DB9)
- USB
- 2 x USB 3.1 Gen1 Type A , 1 x USB 2 Type A 1 x USB 3.1 Type C (device mode only)
- DIO
- 1 x 8-bit DIO terminal block
- Display
- 1 x HDMI 1.4
- Audio
- 1 x Line out/Mic in audio jack *This function will be available on the next version.
- Debug
- 1 x Micro USB debug UART
Internal I/O
- SD
- 1 x uSD3.0 card
- CANBus
- 1 x CAN bus 2.0b
- Fan
- 1 x FAN 12V PWM control
- Camera
- 2 x MIPI-CSI2 for 4-lanes camera, CMJ1: reference to OV9282 / CMJ2: reference to IMX577
Watchdog Timer
- Output & Interval
- TBD
Power
- Type
- 12VDC
- Connector
- Default DC jack , co-lay 2-pole terminal block
- Consumption
- TBD
- RTC Battery
- CR2032 Coin Cell
OS Support
- Linux
- Ubuntu 20.04 (Linux Kernel 5.4.2)
Environment
- Temperature
- Operating: 0 to 60C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
- Height
- PCB: 1mm Top Side: TBD Bottom Side: TBD
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 QRB551 board
Country of Origin
- Country of Origin
- Taiwan
