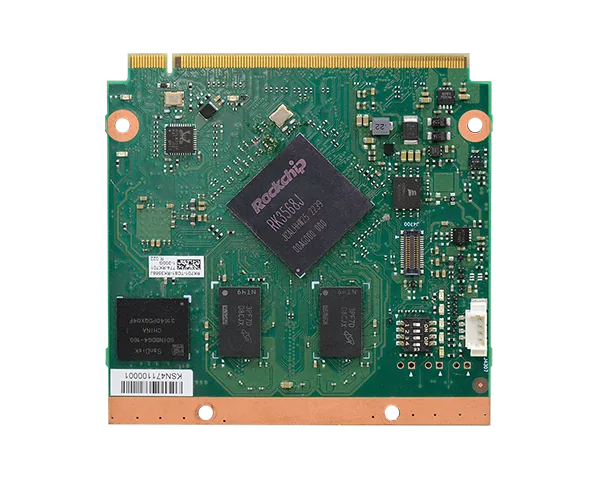

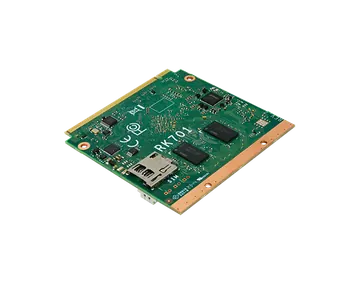

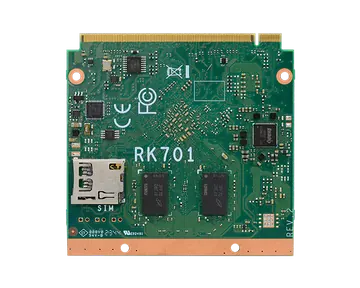

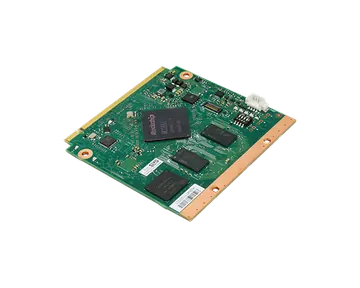

RK701
Qseven, Rockchip Processor, 2GB/4GB/8GB DDR4, 1 eDP/LVDS, 1 DP/TMDS, 2 PCIe 3.0, 1 PCIe 2.0, 1 Realtek GbE, 1 USB 3.2, 4 USB 2.0
- 2GB/4GB/8GB DDR4 Memory Down
- Supports 4K / 2K resolution
- 1 eDP/LVDS + 1 DP/TMDS
- Multiple expansions: 2 PCIe 3.0, 1 PCIe 2.0
- Rich I/O: 1 Realtek GbE, 1 USB 3.2, 4 USB 2.0
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#eDP
#Rockchip Processor
#4K2K Display
#1G Ethernet
#Linux
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- 2GB/4GB/8GB DDR4 Memory Down
- Supports 4K / 2K resolution
- 1 eDP/LVDS + 1 DP/TMDS
- Multiple expansions: 2 PCIe 3.0, 1 PCIe 2.0
- Rich I/O: 1 Realtek GbE, 1 USB 3.2, 4 USB 2.0
System
- Processor
- Rockchip RK3568 quad-core Cortex-A55 @2.0GHz Rockchip RK3568J quad-core Cortex-A55 @1.8GHz
- Memory
- 2GB/4GB/8GB DDR4 Memory Down 3200MHZ
Graphics
- Controller
- G52 2EE
- Feature
- OpenGL ES1.1/2.0/3.0/3.1/3.2, Vulkan 1.1, OpenCL 2.0
- Display
- 1 x eDP/LVDS 1 x DP/TMDS HDMI: resolution up to 4096 x 2160 @30HZ LVDS: resolution up to1024 x 600 @60Hz eDP: resolution up to 3840 x 2160 @60Hz
- Dual Displays
- eDP/LVDS + DP/TMDS
Expansion
- Interface
- 2 x PCIe x1 (Gen 3) 1 x PCIe x1 (Gen 2) 1 x uSD (available upon request) 1 x I2C 2 x SPI (SPI0 set to TPM 2.0) 1 x CAN bus 2 x UART 1 x MIPI-CSI (available upon request)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x RTL8211F-CG
I/O
- USB
- 1 x USB 3.2 4 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s, SATA 1 Co-Lay PCIE Gen 2)
- eMMC
- Supports up to 128GB eMMC, NC as default eMMC 5.1, BGA-153 Ball 8~128G(MLC mode)
- GPIO
- 1 x 4-bit GPIO
Security
- TPM
- TPM 2.0
Power
- Type
- 5V, 5VSB, VCC_RTC
- Consumption
- TBD
OS Support
- Linux
- Linux
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- Qseven form factor 70mm (2.76") x 70mm (2.76")
- Compliance
- Qseven specification revision 2.1
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS
Packing List
- Packing List
- • 1 RK700 board • 1 Heat sink
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| RK701-BC41-RK3568 | 770-RK7011-000G | Rockchip RK3568, 4GB DDR4 Memory Down, LVDS, 1 USB 3.2, 4 USB 2.0, 16GB eMMC, 0 to 60°C |
| RK701-BC81-RK3568 | 770-RK7011-100G | Rockchip RK3568, 8GB DDR4 Memory Down, LVDS, 1 USB 3.2, 4 USB 2.0, 16GB eMMC, 0 to 60°C |
| RK701-TC81-RK3568J | 770-RK7011-200G | Rockchip RK3568J, 8GB DDR4 Memory Down, LVDS, 1 USB 3.2, 4 USB 2.0, 16GB eMMC, -40 to 85°C |
