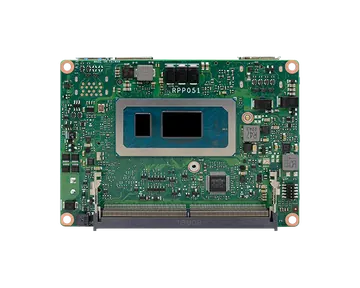

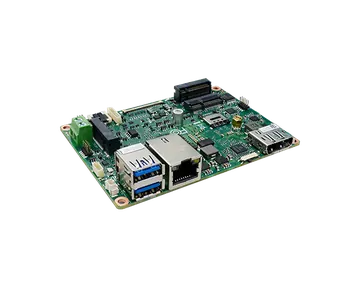

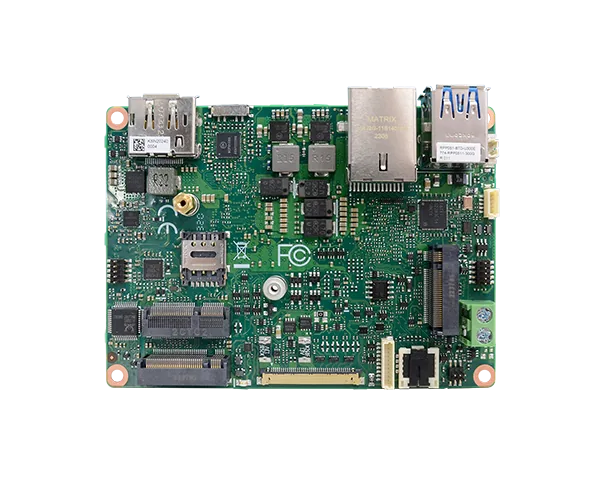

RPP051
2.5" Pico-ITX, 13th Gen Intel® Core™ Processor, 1 DDR4 SODIMM, 1 DP++, 1 eDP, 1 M.2 E key, 2 M.2 B key, 1 Intel 2.5G LAN, 1 COM, 2 USB 3.1 Gen 2, 2 USB 2.0, -5 to 65°C, -30 to 80°C
- Small form factor 2.5" Pico-ITX for space-limited applications
- 13th Generation Intel® Core™ Processors
- 1 DDR5 4800MHz SODIMM up to 32GB
- Supports 4K/2K resolution
- Dual Independent Displays: DP++ + eDP
- Multiple Expansion: 1 M.2 E key, 2 M.2 B key
- Rich I/O: 1 Intel 2.5G LAN, 1 COM, 2 USB 3.1 Gen 2, 2 USB 2.0
Főbb jellemzők
Tanúsítványok
#DDR5
#13th Gen Intel® Core™ Processor
#Windows 10
#Edge AI Computing
#eDP
#Windows 11
#Intel
#Fanless Design
#4K2K Display
#Windows
#Linux
#DP
#Multiple Expansion
#12V DC-in
#RoHS Certification
#CE Certification
#FCC Certification
#KC Certification
#ULT
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Small form factor 2.5" Pico-ITX for space-limited applications
- 13th Generation Intel® Core™ Processors
- 1 DDR5 4800MHz SODIMM up to 32GB
- Supports 4K/2K resolution
- Dual Independent Displays: DP++ + eDP
- Multiple Expansion: 1 M.2 E key, 2 M.2 B key
- Rich I/O: 1 Intel 2.5G LAN, 1 COM, 2 USB 3.1 Gen 2, 2 USB 2.0
System
- Processor
- 13th Generation Intel® Core™ Embedded Processors Intel® Core™ i7-1365UE Processor, 10C/12T, 1.7GHz/4.9GHz, 15W Intel® Core™ i5-1345UE Processor, 10C/12T, 1.4GHz/4.6GHz, 15W Intel® Core™ i3-1315UE Processor, 6C/8T, 1.2GHz/4.5GHz, 15W Intel® Processor U300E, 5C/6T, 1.1GHz/4.3 GHz, 15W 13th Generation Intel® Core™ Industrial Processors (Extended Temp) Intel® Core™ i7-1365URE Processor, 10C/12T, 1.7GHz/4.9GHz, 15W Intel® Core™ i5-1345URE Processor, 10C/12T, 1.4GHz/4.6GHz, 15W Intel® Core™ i3-1315URE Processor, 6C/8T, 1.2GHz/4.5GHz, 15W
- Memory
- One 262-pin SODIMM up to 32GB Single Channel DDR5 up to 4800MHz
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics
- Feature
- DirectX12, Open GL 4.6, Vulkan 1.2 HW Decode: AV1, AVC/H.264, MJPEG, HEVC/H.265, VP9, SCC HW Encode: MJPEG, AVC/H.264, HEVC/H.265, VP9, SCC
- Display
- 1 x DP++ 1 x eDP DP++: resolution up to 4096x2304 @ 60Hz eDP: resolution up to 4096x2160 @120Hz
- Dual Displays
- DP++ + eDP
Expansion
- Interface
- 1 x M.2 E key 2230 (PCIe x1/USB 2.0) 1 x M.2 B key 3042/2242 for storage (PCIe x2/USB 2.0/SATA 3.0) 1 x M.2 B key 3042/2242 for 5G/LTE module (PCIe x1/USB 3.2 Gen1/SATA 3.0), with one Nano SIM slot
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 1 x Intel® I226IT (only Core i7/i5 supports iAMT)

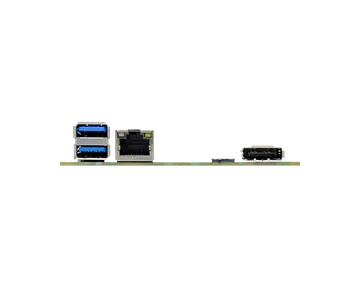

Rear I/O
- Ethernet
- 1 x 2.5GbE (RJ-45)
- USB
- 2 x USB 3.2 Gen 2
- Display
- 1 x DP++ 1 x eDP
Internal I/O
- Serial
- 1 x RS-232/422/485 (1.27mm pitch)
- USB
- 2 x USB 2.0 (1.27mm pitch)
- Display
- 1 x eDP Connector
- Audio
- 1 x Line-out/Mic-in (1.27mm pitch)
- DIO
- 1 x 8-bit DIO (1.00mm pitch)
- SMBus
- 1 x SMBus (1.00mm pitch)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- fTPM2.0
Power
- Type
- Single 12V +/-10% DC
- Connector
- 2-pin Terminal Block
- Consumption
- Typical: 1365UE: 12V @ 0.7A (8.4Watt) Max.: 1365UE: 12V @ 5.58A (66.96Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise (64-bit) Windows 11
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C, -30 to 80°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 1365UE: 621,170 hrs @ 25°C; 428,483 hrs @ 45°C ; 268,117 hrs @ 65°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
- Height
- PCB: 1.6 mm Top Side: 16.34 mm Bottom Side: 9.47 mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA, KC
Packing List
- Packing List
- • 1 RPP051 board • Heat sink for -5 to 65°C (Height: 37.8mm), A71-008153-040G • Heat sink for -30 to 80°C, -40 to 85°C (Height: 37.8mm), A71-008154-010G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| RPP051-BTD-1365UE | 770-RPP0511-000G | Intel® Core™ i7-1365UE Processor, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -5 to 65°C |
| RPP051-BTD-1345UE | 770-RPP0511-100G | Intel® Core™ i5-1345UE Processor, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -5 to 65°C |
| RPP051-BTD-1315UE | 770-RPP0511-200G | Intel® Core™ i3-1315UE Processor, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -5 to 65°C |
| RPP051-BTD-U300E | 770-RPP0511-300G | Intel® Processor U300E, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -5 to 65°C |
| RPP051-ETD-U300E | 770-RPP0511-700G | Intel® Processor U300E, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -30 to 80°C |
| RPP051-TCD-1365URE | 770-RPP0511-800G | Intel® Core™ i7-1365URE Processor, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C |
| RPP051-TCD-1345URE | 770-RPP0511-900G | Intel® Core™ i5-1345URE Processor, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C |
| RPP051-TCD-1315URE | 770-RPP0511-A00G | Intel® Core™ i3-1315URE Processor, 1 DDR5 SO-DIMM, DP++ + eDP, 1 GbE, 1 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, Power: 12VDC, Fanless, -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| Power adapter | 671-106012-000G | 60W, 12V, DC Jack |
| 2 pole terminal to DC Jack cable | A81-004013-000G | |
| USB 2.0 cable | A81-001084-016G | Length: 200mm, 2 ports |
| COM cable | A81-015050-016G | Length: 300mm, 1 port |
| DIO cable | A81-009715-018G | Length: 200mm |
| SMBus cable | A81-009716-018G | Length: 200mm |
| Audio cable | A81-022037-016G | Length: 160mm |
| Front Panel cable | A81-020047-016G | Length: 200mm |
| Heat spreader | A71-808358-000G | Height: 11mm |
