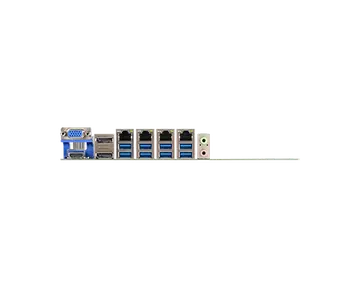

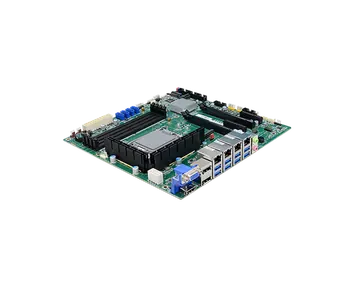

microATX board, BTL-S/14th/13th/12th Gen Intel® Core™, 4 DDR5, 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0, 1 VGA, 2 DP++, 1 HDMI, 4 Intel 2.5GbE, 4 COM, 4 USB 3.2 Gen 2, 6 USB 3.2 Gen 1, 3 USB 2.0
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|

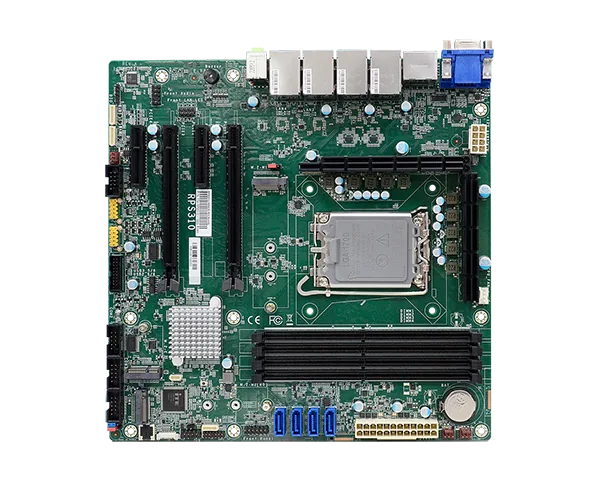

| RPS310-Q670E | 770-RPS3101-000G | Intel® Q670E Chipset, 4 DDR5 UDIMM, 2 2.5GbE, 4 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen 1, 3 USB 2.0, TPM 2.0 (dTPM), Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| RPS310-R680E | 770-RPS3101-100G | Intel® R680E Chipset, 4 DDR5 UDIMM, 4 2.5GbE, 4 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen 1, 3 USB 2.0, TPM 2.0 (dTPM), Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| RPS310-Q670E | 770-RPS3101-200G | Intel® Q670E Chipset, 4 DDR5 UDIMM, 2 2.5GbE, 4 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen 1, 3 USB 2.0, TPM 2.0 (fTPM), Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| RPS310-R680E | 770-RPS3101-300G | Intel® R680E Chipset, 4 DDR5 UDIMM, 4 2.5GbE, 4 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen 1, 3 USB 2.0, TPM 2.0 (fTPM), Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350/398mm |
| USB 3.2 Gen1 port cable | A81-001196-023G | Length: 320mm |
| COM port cable | A81-015026-023G | Length: 300mm, 2 x COM ports |
| Serial ATA data cable | 332-553001-005G A81-002128-017G | Length: 500mm, W/LOCK Length: 500mm, W/LOCK, 90D |
| Thermal solution | A71-101136-000G A71-101137-000G A71-101145-000G | For 35W, Height: 29.39mm For 65W, Height: 46mm For 95W/125W, Height: 110mm |
| DP to HDMI Dongle | 612-D2H13M-000G | |
| M.2-COM4 | 770-M2COM1-000G | M.2 serial port module |
| M.2-2LAN | 770-M22LN1-000G | M.2 LAN port module |
| M.2-2PSE | 770-M22PS1-000G | M.2 PSE module |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
