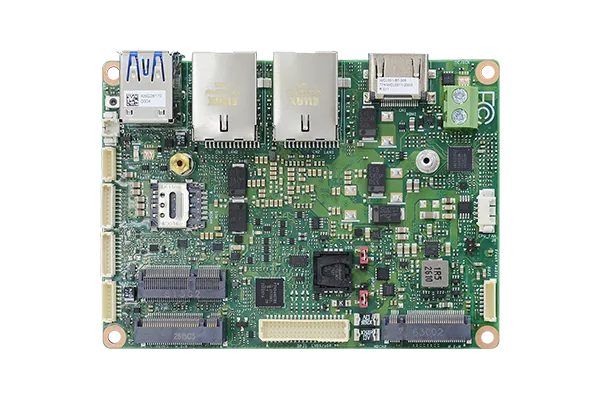

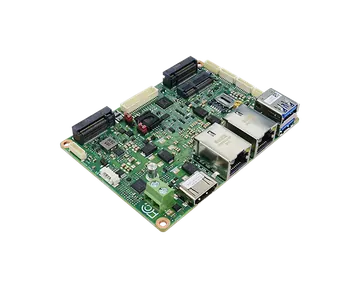

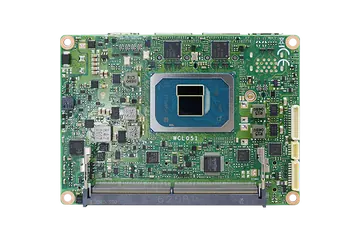

WCL051
2.5" Pico-ITX, Intel® Core™ Series 3 Processors, 1 DDR5 SODIMM, 1 HDMI, 1 LVDS/eDP, 1 M.2 E Key, 1 M.2 B Key, 1 M.2 M Key, 2 Intel 2.5GbE, 2 COM, 2 USB 3.2, 2 USB 2.0
- Intel® Core™ Series 3 Processors (Code Name: Wildcat Lake)
- 1 DDR5 6400MHz SODIMM
- Supports 4K/2K resolution
- Dual Displays: HDMI + LVDS/eDP (Opt.)
- Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 M.2 M Key
- Rich I/O: 2 Intel 2.5GbE, 2 COM, 2 USB 3.2, 2 USB 2.0
Főbb jellemzők
Tanúsítványok
#DDR5
#LVDS
#Edge AI Computing
#eDP
#M.2
#Intel® Wildcat Lake Processors
#IoT
#Windows 11
#Intel
#4K2K Display
#Windows
#Linux
#HDMI
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#High-Performance
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Core™ Series 3 Processors (Code Name: Wildcat Lake)
- 1 DDR5 6400MHz SODIMM
- Supports 4K/2K resolution
- Dual Displays: HDMI + LVDS/eDP (Opt.)
- Multiple Expansion: 1 M.2 E Key, 1 M.2 B Key, 1 M.2 M Key
- Rich I/O: 2 Intel 2.5GbE, 2 COM, 2 USB 3.2, 2 USB 2.0
System
- Processor
- Intel® Core™ Series 3 Processors (Code Name: Wildcat Lake) Intel® Core™ 7 350, 6 Cores, 1.5~4.8GHz, 15W Intel® Core™ 7 360, 6 Cores, 1.5~4.8GHz, 15W Intel® Core™ 5 320, 6 Cores, 1.5~4.6GHz, 15W Intel® Core™ 5 330, 6 Cores, 1.5~4.6GHz, 15W Intel® Core™ 3 305, 6 Cores, 1.5~4.3GHz, 15W Intel® Core™ 3 304, 5 Cores, 1.5~4.3GHz, 15W
- Memory
- One 262-pin SODIMM up to 64GB Single Channel DDR5 6400MHz
- BIOS
- AMI SPI 512Mbit
Graphics
- Controller
- Intel® Xᵉ3 Graphics
- Feature
- OpenGL 4.6, DirectX 12 Ultimate, OpenCL 3.0, Vulkan 1.3 HW Decode: HEVC, VP9, AV1, AVC, VVC (H.266) HW Encode: HEVC, VP9, AV1, AVC
- Display
- 1 x HDMI 1 x LVDS/eDP (Opt.) HDMI: resolution up to 4096×2160 @60Hz LVDS: dual channel 18/24-bit, resolution up to 1920x1200 @60Hz eDP: resolution up to 2560x1440 @ 60Hz (2 Lane)
- Dual Displays
- HDMI + LVDS/eDP (Opt.)
Expansion
- Interface
- 1 x M.2 2230 E Key (PCIe Gen4 x1/USB 2.0), for Wi-Fi/BT. 1 x M.2 3042 B Key (PCIe Gen4 x1/USB 3.2 Gen2 x1) with 1 x Nano SIM slot for 4G/5G. 1 x M.2 2242 M key (PCIe Gen4 x2), for storage.
Audio
- Audio Codec
- CMEDIA CM9825
Ethernet
- Controller
- 2 x Intel® I226V/LM (10/100/1000/2500Mbps)

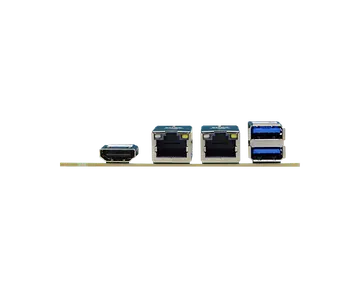

Rear I/O
- Ethernet
- 2 x 2.5GbE (RJ-45)
- USB
- 2 x USB 3.2 Gen2
- Display
- 1 x HDMI
Internal I/O
- Serial
- 2 x RS-232/422/485 (1.00mm pitch, 2 x 9-pin header)
- USB
- 2 x USB 2.0 (1.00mm pitch, 1 x 8-pin header)
- Display
- 1 x 40 pin LVDS/eDP (Default: LVDS)
- Audio
- 1 x Line-out/Mic-in (1.00mm pitch, 1 x 8-pin header)
- DIO
- 1 x 8-bit DIO (1.00 pitch, 1 x 10-pin header)
- SMBus
- 1 x I2C/SMBus (Opt.)
- Front Panel
- 1 x front panel (power button/reset button, power LED, HDD act LED)
- Fan
- Smart Fan 12V (4-wire)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- dTPM2.0
Power
- Type
- Single 12V (+/- 5%) DC
- Connector
- 2-pin Terminal Block
- Consumption
- TBD
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support (UEFI Only)
- Windows 11 IoT Enterprise LTSC 24H2 Linux
Environment
- Temperature
- Operating: 0 to 60 °C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
- Height
- PCB: 1.6 mm Top Side: 16mm Bottom Side: 9.4mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- • 1 WCL051 board • 1 Cooler (Height: 26 mm) A71-108171-A00G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| WCL051-BT-350 | 770-WCL0511-000G | Intel® Core™ 7 350, 6C, 15W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12VDC, Cooler, 0~60°C |
| WCL051-BT-320 | 770-WCL0511-100G | Intel® Core™ 5 320, 6C, 15W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12VDC, Cooler, 0~60°C |
| WCL051-BT-305 | 770-WCL0511-200G | Intel® Core™ 3 305, 6C, 15W, 1 DDR5 SODIMM, HDMI + LVDS, 2 2.5GbE, 2 RS-232/422/485, 2 USB 3.2 Gen2, 2 USB 2.0, 12VDC, Cooler, 0~60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Power adapter | 671-106012-000G | 60W, 12V |
| 2-pin power to DC jack cable | A81-004013-000G | Length: 115mm |
| COM port cable | A81-015130-018G | Length: 250mm, 1x COM port |
| USB 2.0 cable | A81-001201-018G | Length: 200mm, 2 USB ports |
| Front panel cable | A81-009899-018G | Length: 250mm |
| Audio cable | A81-022043-054G | Length: 200mm |
| DIO cable | A81-009715-018G | Length: 200mm |
| SMBus cable | A81-009716-018G | Length: 200mm |
| Heat spreader | TBD | Height: 11 mm |
