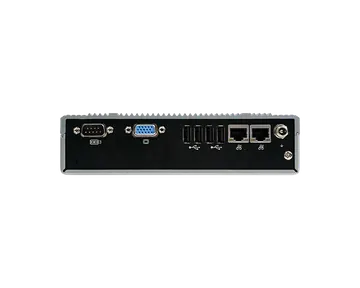

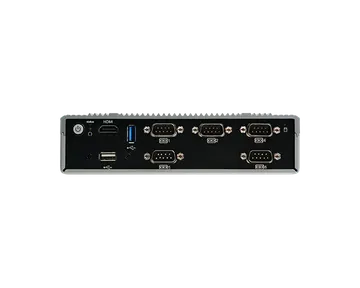

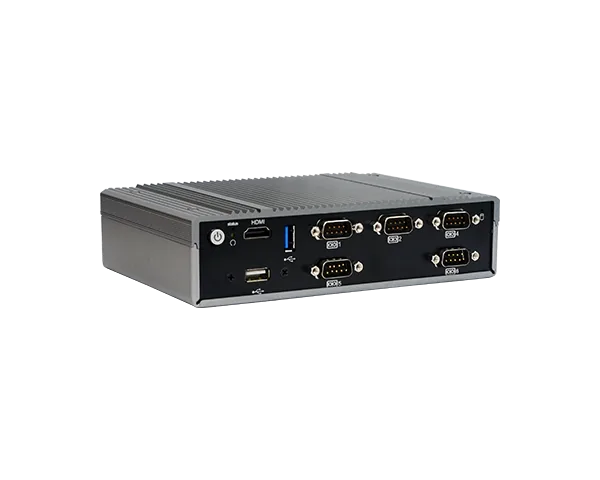

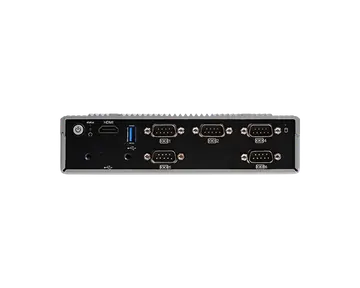

The EC700-BT6051/6061 takes full advantage of the Intel® Atom™ E3800 processor which is packed with extensive I/O capabilities including 2 Gigabit LAN, 6 COM ports, 5-6 USB ports to provide increased mobile computing. The optional onboard eMMC and microSD socket are designed for additional storage in space-limited environments.To ensure efficient communication, the system supports Wi-Fi and 3G/GPRS via Mini PCIe slots. EC700-BT6051/6061 is equipped with 1 SIM card socket and 3 Wi-Fi antenna holes making the system more suitable for environments that require wireless applications.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EC700-BT6051-J194 | 750-EC7000-I00G | EC700-BT6051-J194:Fanless, EC700, 2 LAN, 1 HDMI, 1 VGA, 6 COM, 5 USB, 4GB RAM,F/G SYSTEM RoHS |
| EC700-BT6061-E454 | 750-EC7000-J00G | EC700-BT6061-E454:Fanless, EC700, 2 LAN, 1 HDMI, 1 VGA, 6 COM, 6 USB, 4GB RAM,F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| HDD | 785-H25500G 785-H25320G 785-S251TBG 785-S25512G 785-S25256G 785-S25128G 785-S25064G | 2.5” SATA HDD, 500GB, RoHS 2.5” SATA HDD, 320GB, RoHS 2.5" SATA SSD, 1TB MLC, RoHS 2.5" SATA SSD, 512GB MLC, RoHS 2.5" SATA SSD, 256GB MLC, RoHS 2.5" SATA SSD, 128GB MLC, RoHS 2.5" SATA SSD, 64GB MLC, RoHS |
| mSATA | 785-MS128GMF 785-MS64GMF 785-MS32GMF 785-MS16GMF 785-MS08GMF 785-MS04GMF | mSATA Card, 128GB MLC, RoHS mSATA Card, 64GB MLC, RoHS mSATA Card, 32GB MLC, RoHS mSATA Card, 16GB MLC, RoHS mSATA Card, 8GB MLC, RoHS mSATA Card, 4GB MLC, RoHS |
| Wi-Fi | 761-110091-000G | Wi-Fi Kit, RoHS |
| 3G + GPS | 612-110040-600G | 3G + GPS Kit, RoHS |
| Power Cord | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106012-000G | 60W, 12V/5A, Level 6, RoHS |
| Wall Mount | 761-EC8000-000G | EC700/800 Wall Mount Kit, RoHS |
| VESA Mount | 761-EC7000-100G | EC700 VESA Mount Kit, RoHS |
| DC Cord | A81-004031-007G | UL 1185 (5.5x2.5x9.5mm) with Nut to stripped and tinned, length 1000mm |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
