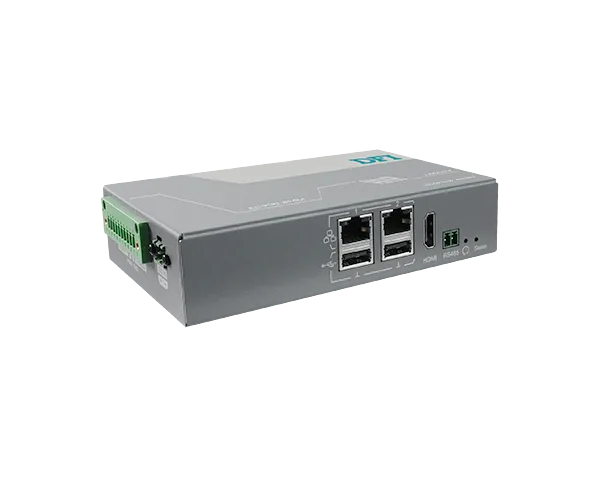

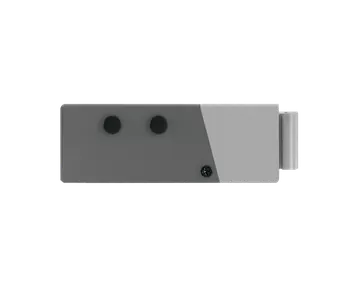

Modular-Designed System, NXP i.MX8M Mini platform, M.2 support, PoE, 1 HDMI, LPDDR4, 2 GbE LAN, 2 USB, RS422, RS485
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EC900-8MM | 750-EC9001-000G | -5 to 60°C, 1GB On board Memory LPDDR4, 8GB Storage eMMC. 1 HDMI, 2 GbE, 2 USB 2.0, 2 RS-485, 4 RS-422, 4-bit DIO, Yocto 3.3 (Kernel 5.10) |
| EC900-8MM | 750-EC9001-200G | -5 to 60°C, 4GB On board Memory LPDDR4, 8GB Storage eMMC. 1 HDMI, 2 GbE, 2 USB 2.0, 2 RS-485, 4 RS-422, 4-bit DIO, Yocto 3.3 (Kernel 5.10) |
| EC900-8MM | 750-EC9001-500G | -40 to 70°C, 4GB On board Memory LPDDR4, 8GB Storage eMMC. 1 HDMI, 2 GbE, 2 USB 2.0, 2 RS-485, 4 RS-422, 4-bit DIO, Yocto 3.3 (Kernel 5.10) |
| EC910-8MM | 750-EC9101-000G | -5 to 60°C, 1GB On board Memory LPDDR4, 8GB Storage eMMC. 1 HDMI, 2 GbE, 2 USB 2.0, 2 RS-485, 4 RS-422, 2 DB9 RS-232, 4-bit DIO, Yocto 3.3 (Kernel 5.10) |
| EC910-8MM | 750-EC9101-100G | -5 to 60°C, 4GB On board Memory LPDDR4, 8GB Storage eMMC. 1 HDMI, 2 GbE, 2 USB 2.0, 2 RS-485, 4 RS-422, 2 DB9 RS-232, 4-pole DIO, Yocto 3.3 (Kernel 5.10) |
| EC910-8MM | 750-EC9101-400G | -40 to 70°C, 2GB On board Memory LPDDR4, 8GB Storage eMMC. 1 HDMI, 2 GbE, 2 USB 2.0, 2 RS-485, 4 RS-422, 2 DB9 RS-232, 4-bit DIO, Yocto 3.3 (Kernel 5.10) |
| EC910-8MM | 750-EC9101-500G | -40 to 70°C, 4GB On board Memory LPDDR4, 8GB Storage eMMC. 1 HDMI, 2 GbE, 2 USB 2.0, 2 RS-485, 4 RS-422, 2 DB9 RS-232, 4-bit DIO, Yocto 3.3 (Kernel 5.10) |
| EC910-8MM | 750-EC9101-600G | -40 to 70°C, 4GB On board Memory LPDDR4, 8GB Storage eMMC. 1 HDMI, 2 GbE, 2 USB 2.0, 2 RS-485, 4 RS-422, 2 DB9 RS-232, 4-bit DIO, TPM 2.0/TrustZone, Yocto 3.3 (Kernel 5.10) |
| Item Name | Part Number | Description |
|---|---|---|
| Power Adapter | 671-102002-000G 671-102501-000G | POWER ADAPTER 100~240V 24V/1A 24W 100x45x31mm L=1500mm(EDAC) EA1024J1 (03) LV6 RoHS POWER ADAPTER 25W; GST25A24; Input:100~240V; Output:24Vdc/1.04A; 93x54x36mm L=1800mm Stripped and tinned leads; LV6; GST25A24-DFI(MEAN WELL)RoHS |
| Power Cord | 785-PWRD | Standard (USA/EUR/CH…) Power Cord |
| WiFi/BT module | 612-RTL882-000G | Wi-Fi+BT(V5.0+LE and BR/EDR) M.2 2230 Combo Module Card RTL8822CE(ENLI)RoHS |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
The BMAL box module also supports DFI’s Adaptive Display Platform (ADP) Technology. It is an innovative panel PC solution that offers the flexibility of modularized integration of panel PC components for expedited product development and shortened time to market.
