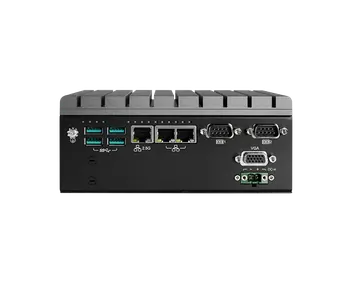

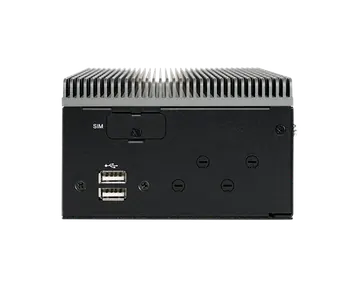

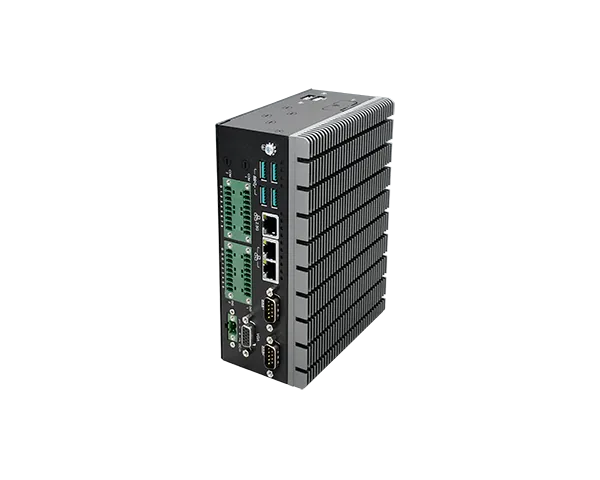

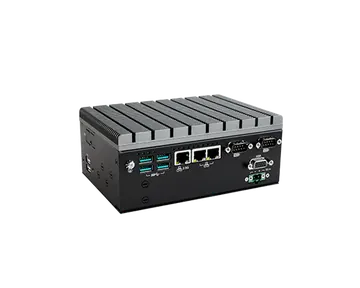

DFI's ED700-EHL/ED700-EHL22I is the 5G-module support Fanless Embedded System powered by Intel® Atom® Processors X Series. It is ideal for AMR/AGV, machine vision and other industrial automation applications. ED700-EHL supports 5G cellular, 2.5GbE TSN, 3 M.2, 1 VGA, 4 COM, up to 4 LAN or 4 USB 3.1.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ED700-EHL | 750-ED70001-000G | Intel® Celeron® J6412, 4GB RAM(OnBoard), 16GB eMMC, 2 USB 2.0, 4 USB 3.1, 1 2.5GbE, 2 GbE, 2 COM, 1 VGA, 0 to 60°C |
| ED700-EHL | 750-ED70001-100G | Intel® Atom® x6413E, 8GB RAM(OnBoard), 32GB eMMC, 2 USB 2.0, 4 USB 3.1, 1 2.5GbE, 2 GbE, 2 COM, 1 VGA, In-Band ECC Support(Default disabled), -40 to 60°C |
| ED700-EHL | 750-ED70001-200G | Intel® Atom® x6425E, 8GB RAM(OnBoard), 32GB eMMC, 2 USB 2.0, 2 USB 3.1, 1 2.5GbE, 3 GbE, 2 COM, 1 VGA, In-Band ECC Support(Default disabled), -40 to 60°C |

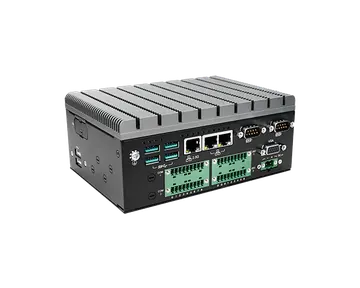

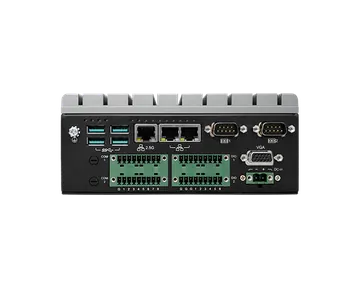

| ED700-EHL22I | 750-ED71001-300G | Intel® Celeron® J6412, 4GB RAM(OnBoard), 16GB eMMC, 2 USB 2.0, 4 USB 3.1, 1 2.5GbE, 2 GbE, 2 COM, 2 COM(Isolated), 6 bit DI+ 6 bit DO(Isolated), 1 VGA, 0 to 60°C |
| ED700-EHL22I | 750-ED71001-400G | Intel® Atom® x6425RE, 8GB RAM(OnBoard), 32GB eMMC, 2 USB 2.0, 2 USB 3.1, 1 2.5GbE, 3 GbE, 2 COM, 2 COM(Isolated), 6 bit DI+ 6 bit DO(Isolated), 1 VGA, In-Band ECC Support(Default disabled), -40 to 60°C, Support TCC |
| Item Name | Part Number | Description |
|---|---|---|
| Adapter | 671-106013-000G 671-106012-000G | 60W 12V inlet C14, locable DC Jack 5.5/2.5mm, cable length 1000mm, wide temp. 60W 12V inlet C14, locable DC Jack 5.5/2.5mm, cable length 1500mm |
| Power Cord | 332-700010-201G A81-004003-000G A81-000001-000G A81-000046-000G | Power Cord US 3pin 1830mm Length Power Cord EU 2pin 1830mm Length Power Cord China 3pin 1830mm Length Power Cord JP 3pin 1830mm length (with DFI PSE logo) |
| Din Rail kit | 761-ED70001-000G | ED700-EHL Din rail kit |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
