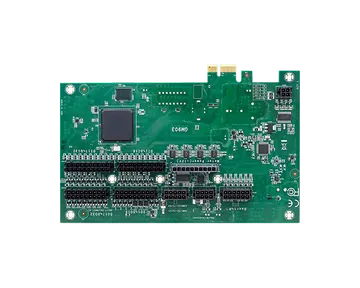

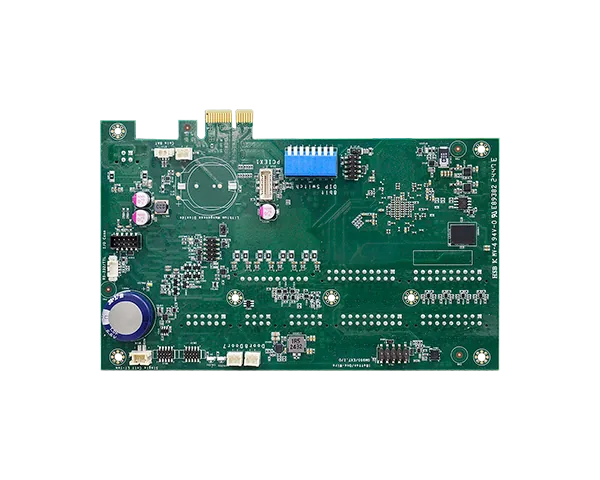

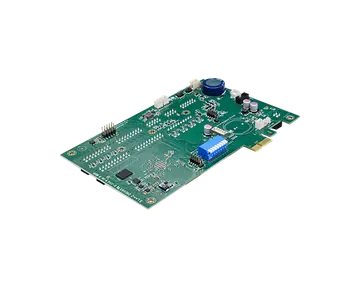

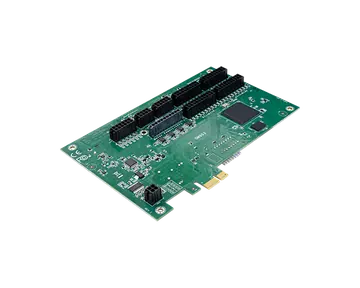

GM903
Gaming I/O control board featuring FPGA and MCU, with 8 intrusion detection channels, battery-backed NVRAM, and reliable data security.
- FPGA & MCU gaming I/O control board
- Support PCIex1 slot and High/Low speed connectors
- 8 Intrusion detection and battery backed NVRAM
- Reliable Data Security (Secure Boot, Secure Content)
Főbb jellemzők
#FGPA
#PCIe
#12V DC-in
#Gaming
Főbb jellemzőkKey features
- FPGA & MCU gaming I/O control board
- Support PCIex1 slot and High/Low speed connectors
- 8 Intrusion detection and battery backed NVRAM
- Reliable Data Security (Secure Boot, Secure Content)
Processor
- FPGA + MCU
- FPGA & MUC implementation of the gaming features controller
Internal I/O
- USB
- Pin header for USB 2.0 signal input
- UART
- Pin header for UART signal input
- I2C
- Pin header for I2C signal input
- Host Interface
- High/low speed connector 1 x PCIe x1 slot (Gold finger)
Gaming
- Intrusion Detection
- 8 x intrusion detection Logs Date/ Time of latest 64 events Operates with and without system active (G3 power from BAT) 5 Years data retention during AC off
- DI/DO
- 32-bit Digital Input 32-bit OC output (29-bit x 500mA, 3-bit x 3A, up to 24V), Low Active
- iButton
- Support iButton 1-wire protocol Support ds1996 device (default)
- Meter Power
- 8 ports can be set as meter output with disconnect detect
- Serial
- 2 x RS232/CCTalk (TX/RX)
- Audio
- Stereo 6W+6W Class D Audio AMP Output
- Security
- (By request) SHA-256 or AES-256 128B RBG
- SRAM (NVRAM)
- Support 2pcs SRAM (BGA type) 2 x SRAM supported with battery backup, Default 4MB/Single (up to 16MB/Dual) Backup to Retain Data for 5 years during AC off
- EEPROM
- EEPROM 2KB
- Coin battery
- 1 x CR2032 Lithium 3V/220mAh with socket type 1 header for cable type
Hardware
- Dimension
- 170mm x 113 mm
Power
- Type
- 12V DC in
Country of Origin
- Country of Origin
- Taiwan
