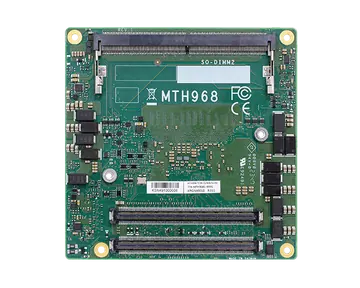

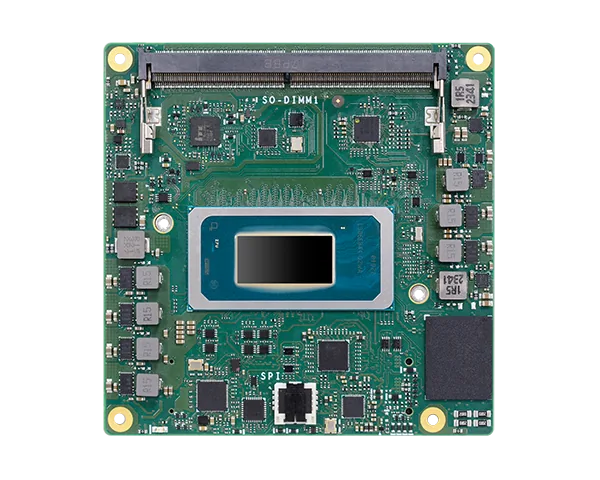

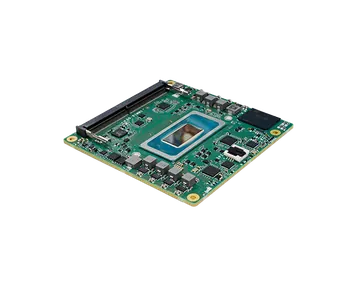

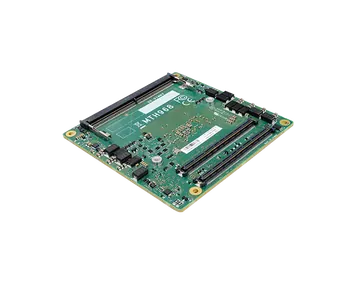

MTH968
COM Express Type 6, Intel® Core™ Ultra processors, DDR5, 1 VGA + 1 LVDS/eDP + 2 DDI, 8 PCIe x1, 2 PCIe x4, 1 PCIe x8, 1 I2C, 1 SMBus, 1 LPC/eSPI, 2 UART, 1 Intel 2.5GbE, 2 USB 4.0, 4 USB 3.2, 8 USB 2.0, 2 SATA 3.0
- Intel® Core™ Ultra Processor (Meteor Lake: U/H-series)
- Dual Channel DDR5 5600MHz SODIMM up to 96GB
- Multiple Displays: 1 VGA + 1 LVDS/eDP + 2 DDI
- Supports 4K / 2K resolution
- Multiple Expansion: 8 PCIe x1, 2 PCIe x4, 1 PCIe x8, 1 I2C, 1 SMBus, 1 LPC/eSPI, 2 UART
- Rich I/O: 1 Intel 2.5GbE, 2 USB 4.0, 4 USB 3.2, 8 USB 2.0, 2 SATA 3.0
Főbb jellemzők
Tanúsítványok
#DDR5
#LVDS
#Edge AI Computing
#eDP
#USB 4.0
#Slim Bootloader
#Intel® Core™ Ultra processors
#IoT
#Intel
#4K2K Display
#Windows
#Linux
#HDMI
#VGA
#DP
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Core™ Ultra Processor (Meteor Lake: U/H-series)
- Dual Channel DDR5 5600MHz SODIMM up to 96GB
- Multiple Displays: 1 VGA + 1 LVDS/eDP + 2 DDI
- Supports 4K / 2K resolution
- Multiple Expansion: 8 PCIe x1, 2 PCIe x4, 1 PCIe x8, 1 I2C, 1 SMBus, 1 LPC/eSPI, 2 UART
- Rich I/O: 1 Intel 2.5GbE, 2 USB 4.0, 4 USB 3.2, 8 USB 2.0, 2 SATA 3.0
System
- Processor
- Intel® Core™ Ultra Processor (Meteor Lake: U/H-series) Intel® Core™ Ultra 7 165H (6 P-Cores x 1.4 GHz, 8 E-Cores x 0.9 GHz, 24 MB cache, 28W) Intel® Core™ Ultra 7 155H (6 P-Cores x 1.4 GHz, 8 E-Cores x 0.9 GHz, 24 MB cache, 28W) Intel® Core™ Ultra 5 125H (4 P-Cores x 1.2 GHz, 8 E-Cores x 0.7 GHz, 18 MB cache, 28W) Intel® Core™ Ultra 7 165U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W) Intel® Core™ Ultra 7 155U (2 P-Cores x 1.7 GHz, 8 E-Cores x 1.2 GHz, 12 MB cache, 15W) Intel® Core™ Ultra 5 125U (2 P-Cores x 1.3 GHz, 8 E-Cores x 0.8 GHz, 12 MB cache, 15W)
- Memory
- Two 260-Pin SO-DIMM up to 96GB Dual Channel DDR5 5600MHz
- BIOS
- AMI BIOS
Graphics
- Controller
- Intel Xe LPG graphics
- Feature
- DX12, Open GL 4.6, Vulkan 1.2 HW Decode: MPEG2, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9 and AV1 HW Encode: AVC/H264, JPEG, HEVC/H265, VP9 and AV1
- Display
- 1 x VGA 1 x LVDS/eDP (eDP available upon request) 2 x DDI (The 3rd DDI BOM option with USB3) VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 30Hz DP++: resolution up to 4096x2304 @ 60Hz
- Multiple Displays
- VGA + LVDS + 2 DDI VGA + LVDS + 3 DDI (available upon request)
Expansion
- Interface
- 1 x PCIe x8 (Gen 5) on PEG, H-series only 2 x PCIe x4 (Gen4) on PEG 8 x PCIe x1 (Gen 4) 1 x SMBus 1 x SPI 2 x UART (TX/RX) 1 x LPC (co-lay with eSPI)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I226 series (10/100/1000Mbps/2.5G), co-lay PCIe x1 (available upon request)
I/O
- USB
- 4 x USB 3.2 (Gen2, 1 co-lay with DDI) 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s), co-lay 2 PCIe x1 (available upon request)
- DIO
- 1 x 8-bit DIO
- NVMe SSD
- 1 x 128GB/256GB/512GB/1024GB on board SSD (available upon request)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- 8.5~20V, 5VSB, VCC_RTC (ATX mode) 8.5~20V, VCC_RTC (AT mode)
- Consumption
- TBD
OS Support
- Microsoft
- Windows 11/10 IoT Enterprise 64-bit
- Linux
- Linux
Environment
- Temperature
- · Operating: 0°C~60°C for H-sku; -40°C~85°C for U-sku · Storage: -40°C~85°C
- Humidity
- · Operating: 10%~90% RH · Storage: 10%~90% RH
- MTBF
- 1,306,905 hrs @ 25°C; 730,826 hrs @ 45°C; 469,070 hrs @ 60°C 348,582 hrs @ 70°C; 223,341 hrs @ 85°C excluding accessories Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Compact 95mm (3.74") x 95mm (3.74")
- Compliance
- PICMG COM Express® R3.1, Type 6
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- · Cooler A71-108156-010G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| MTH968-BC00-155H | 770-MTH9682-100G | Intel® Core™ Ultra 7 155H, 2 DDR5 SODIMM, LVDS, LAN, SATA, TPM 2.0, Power ATX/AT, Cooler, 0°C~60°C |
| MTH968-BC00-125H | 770-MTH9682-300G | Intel® Core™ Ultra 7 125H, 2 DDR5 SODIMM, LVDS, LAN, SATA, TPM 2.0, Power ATX/AT, Cooler, 0°C~60°C |
| MTH968-TC00-165U | 770-MTH9682-400G | Intel® Core™ Ultra 7 165U, 2 DDR5 SODIMM, eDP, LAN, SATA, TPM 2.0, Power ATX/AT, Cooler, -40°C~85°C |
| MTH968-TC00-155U | 770-MTH9682-500G | Intel® Core™ Ultra 7 155U, 2 DDR5 SODIMM, eDP, LAN, SATA, TPM 2.0, Power ATX/AT, Cooler, -40°C~85°C |
| MTH968-TC00-125U | 770-MTH9682-700G | Intel® Core™ Ultra 7 125U, 2 DDR5 SODIMM, eDP, LAN, SATA, TPM 2.0, Power ATX/AT, Cooler, -40°C~85°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat Spreader | A71-808365-000G | |
| COM335 Carrier Board Kit | 770-CM3351-000G | |
| COM335-C Carrier Board kit | 770-CM335C1-000G |
